This Kit has all you need to start shredding plastic, you don't have to wait too long for the all machine to be built, all you have to do is to build a frame or you can mount it on an existing solid table or  go to the scrap yard to get some metal pipe, weld them together and you are good to go. if you need help building the frame, let me know. it usually take 2 to 3 WEEKS days to ship the kit.

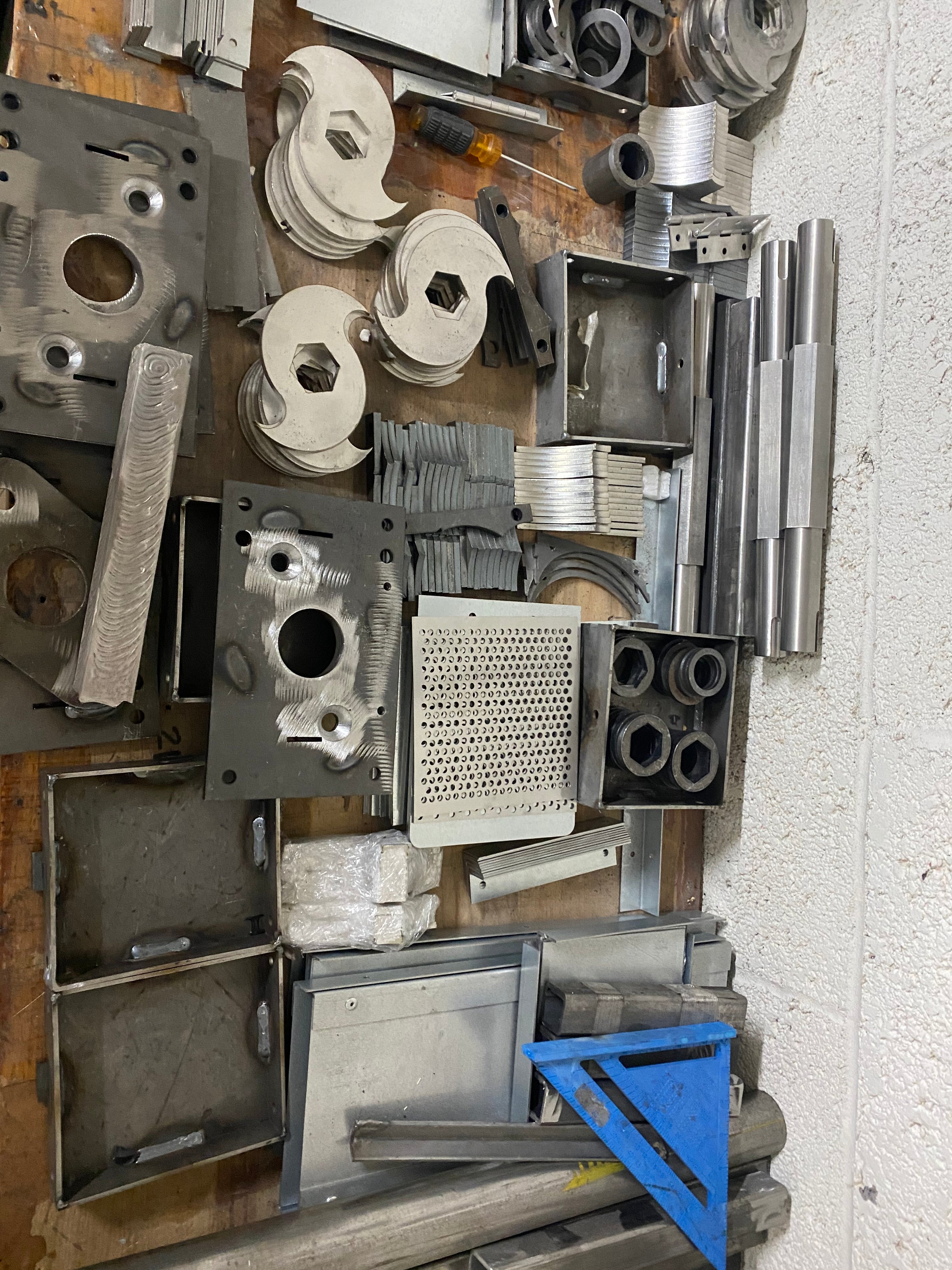

here are the parts you will be getting as shown in the pics also.

shredder box with single phase 110/220VAC 1.5HP high torque motor (made in USA) and 30:1 gearbox. V2 hopper with plunger. Bin for shredded plastic. Mounted to steel frame with cover and window as shown in pictures.

Features:

• Reverse switch for clearing jams
• .25" perforated stainless steel screen
• Flexible couplet with urethane insert
• Inverted motor mourning for better stability
• Hand built in the USA with quality components and materials
• wooden receptor is included

1- Shredder unit V3 shaft 1.18"

2. Hopper

3. Worldwide Electric CALM63-S Single Out- put Shaft For CALM Series 63mm Alumni- um Worm Gear Reducer

4. Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal

5. Drum Reversing Switch, Power Rating @ 230 VAC Single Phase 2 HP, Power Rating @ 115 VAC Single Phase 1 1/2 HP, Power Rating @ 230 VDC 1/4 HP, Length 4 1/2 Inches, Depth 4 Inches, Width 2 1/4 Inches, Reversing

6. Love joy L-100 1.1875 Coupling, 1-3/16" Bore

latest version of Shredder, stainless steel hex shaft designed for allowing coupling effect at one ends. 5mm sieve included

Complete Stainless Steel shredder. Teeth and fixed teeth are made from 304 stainless steel (5mm) with the remainder of fabrication, mild steel laser cut plate. Included are 2 high quality UCFL 206 30mm self lubricating bearing's. Bearings are slide fit on shaft.

The shredder build 10mm side plates comes with improvement's above for increased strength,. This updated design is due to specific known issues from previous version designs that had been in operation. Observations and recorded information from users to design engineer's noted, "Operational improvement was needed to serve the customer base with a fully reliable product of open source availability."

The 10mm front and rear plate shredder you order -Assembled and shipped, all components are fabricated and tested before making available to customers, all parts and box sections welded for you during our fabrication. This product is Laser cut to very high standard, cleaned and ready for you to get operating in a short time period.

Complete shredder machine with single phase 110/220VAC 1.5HP high torque motor (made in USA) and 30:1 gearbox. V2 hopper with plunger. Bin for shredded plastic. Mounted to steel frame with cover and window as shown in pictures.

Features:

• Reverse switch for clearing jams
• .25" perforated stainless steel screen
• Flexible coupler with urethane insert
• Inverted motor mouning for better stability
• Hand built in the USA with quality components and materials
• wooden receptor is included

1- Shredder unit V3 shaft 1.18"

2. Hopper

3. Worldwide Electric CALM63-S Single Out- put Shaft For CALM Series 63mm Alumin- um Worm Gear Reducer

4. Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal

5. Drum Reversing Switch, Power Rating @ 230 VAC Single Phase 2 HP, Power Rating @ 115 VAC Single Phase 1 1/2 HP, Power Rating @ 230 VDC 1/4 HP, Length 4 1/2 Inches, Depth 4 Inches, Width 2 1/4 Inches, Reversing

6. Lovejoy L-100 1.1875 Coupling, 1-3/16" Bore

In this awesome "How To" you will make an aluminium mold for injecting a plate (3mm thickness) from recycled plastic.

Can be used for serving dry food like nuts or for objects :) Should not be used for eating purposes - only if you apply a correct coating or lacquer!

please contact us for wait time, usually 2 weeks
