SHREDDER FULLY BUILT WITH HOPPER - 21 x 5MM 3 BLADE ROTATING SHEAR CUTS PLUS 6MM SIEVE with HOPPER

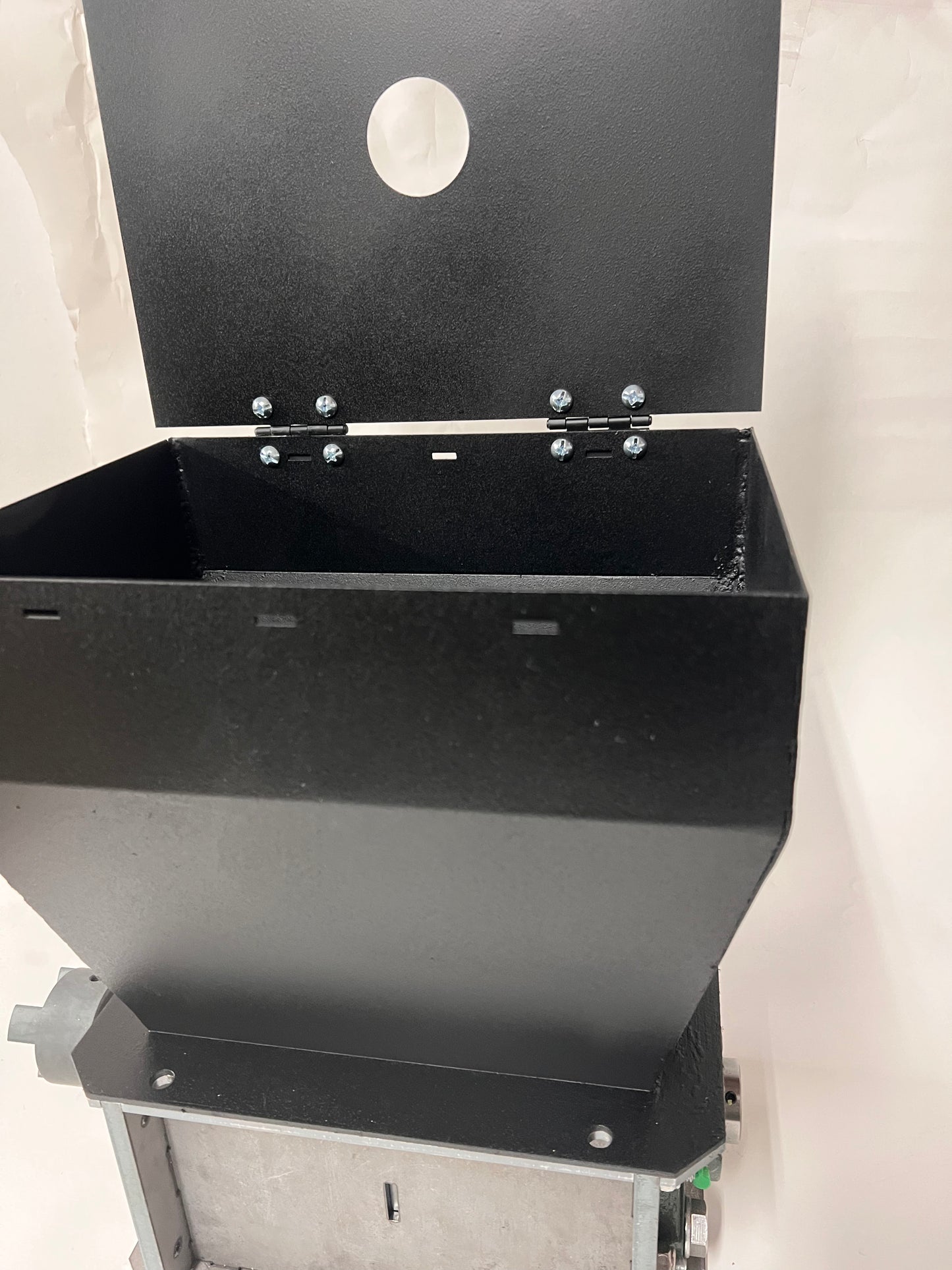

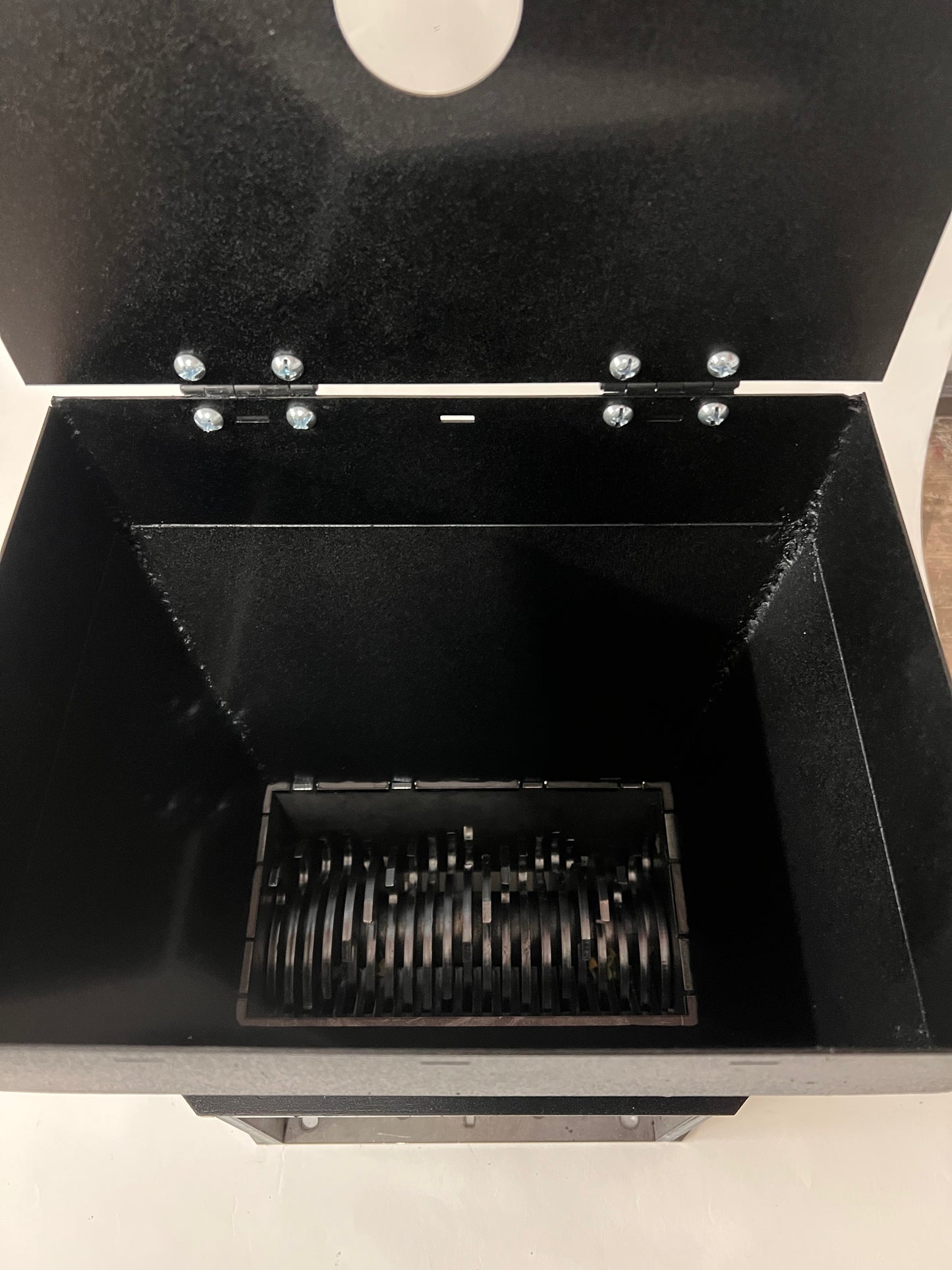

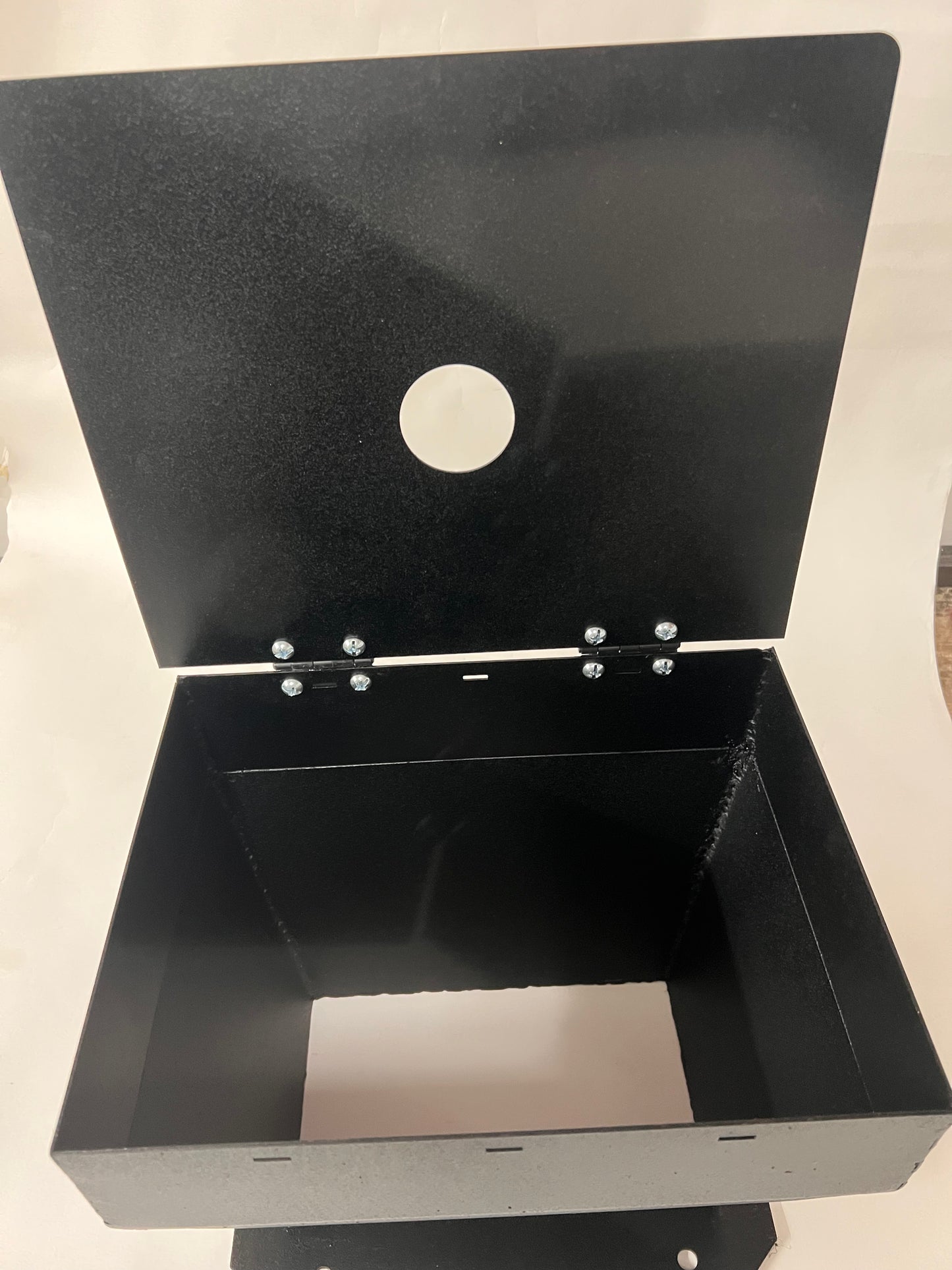

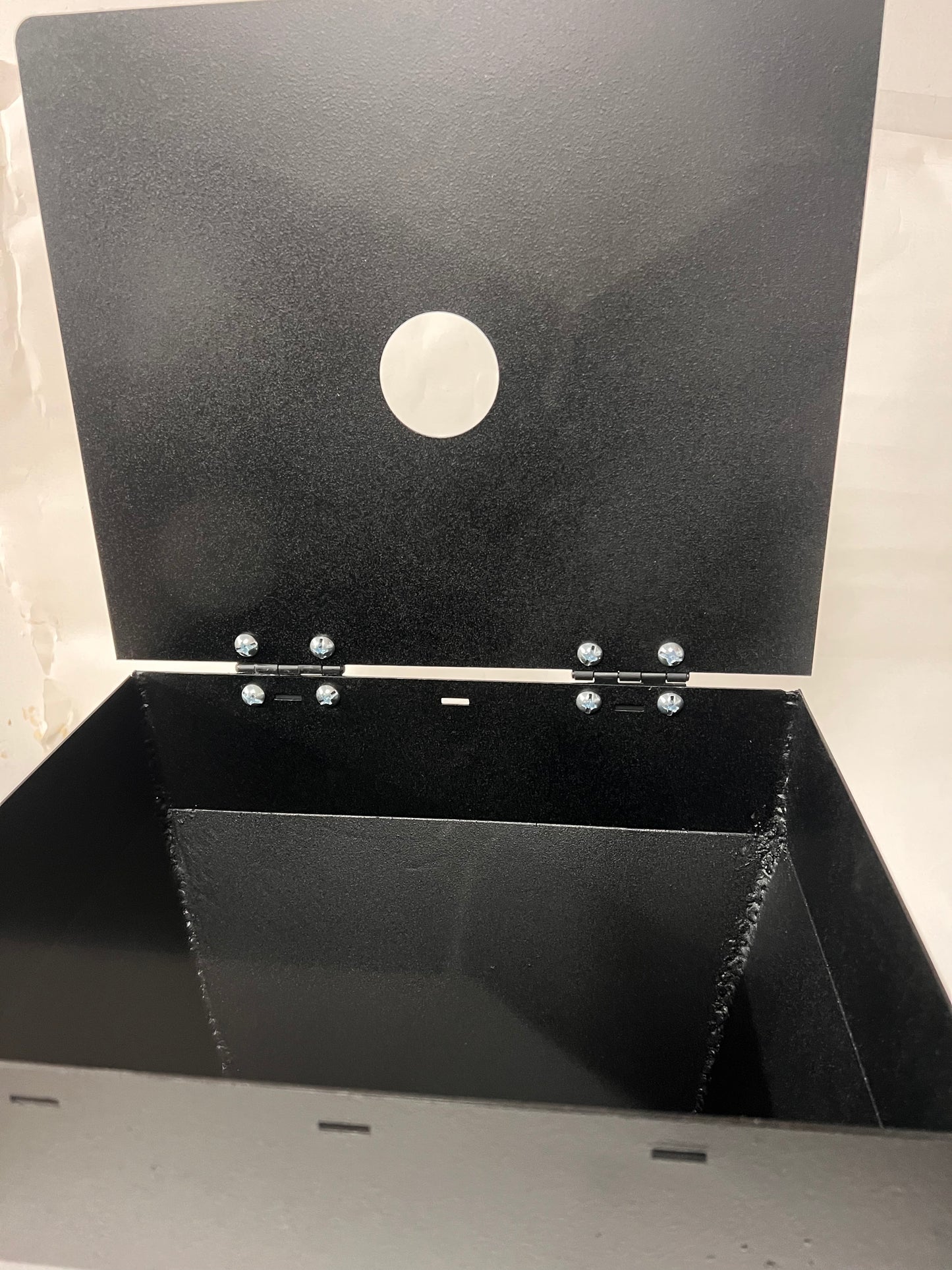

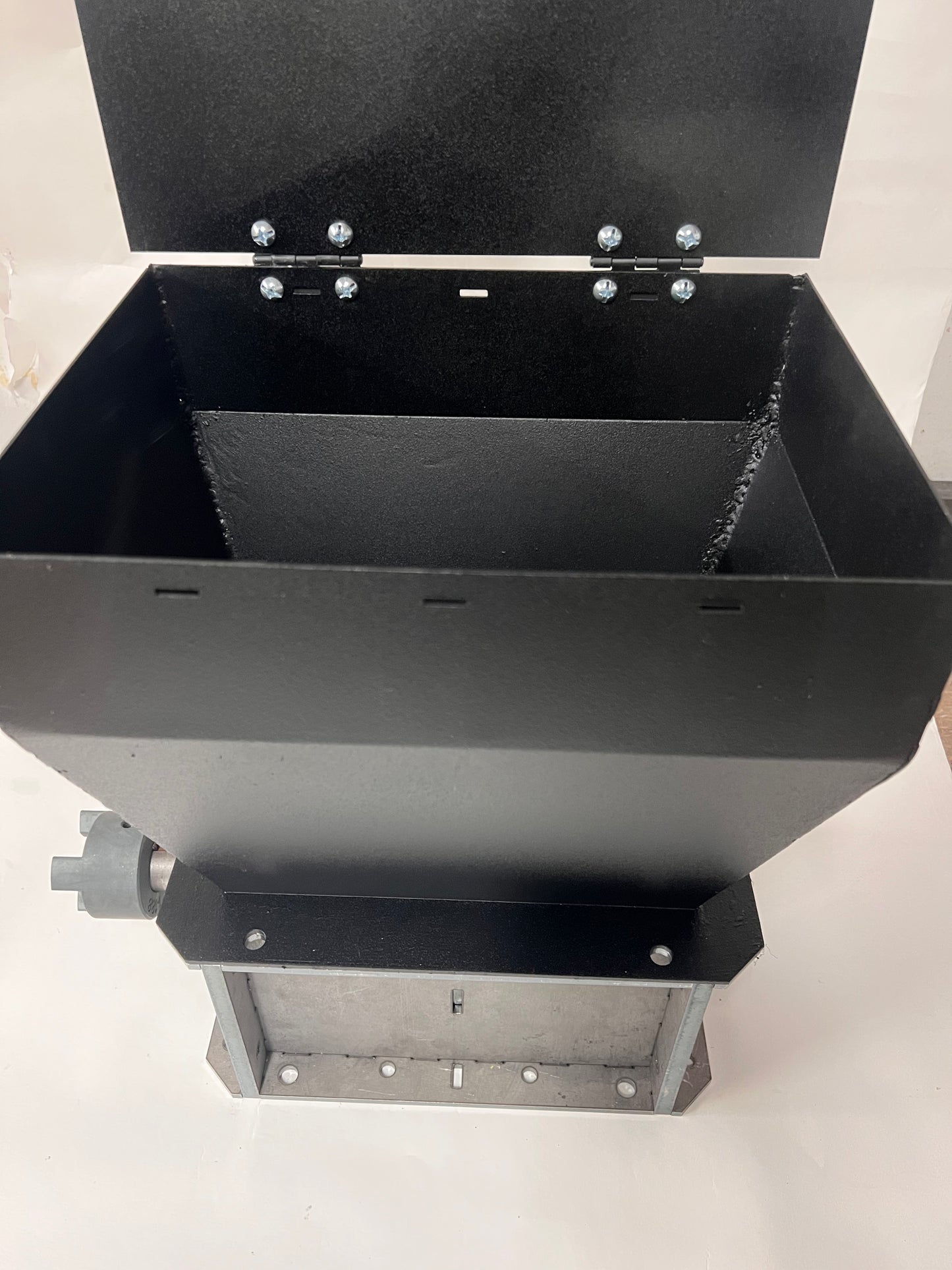

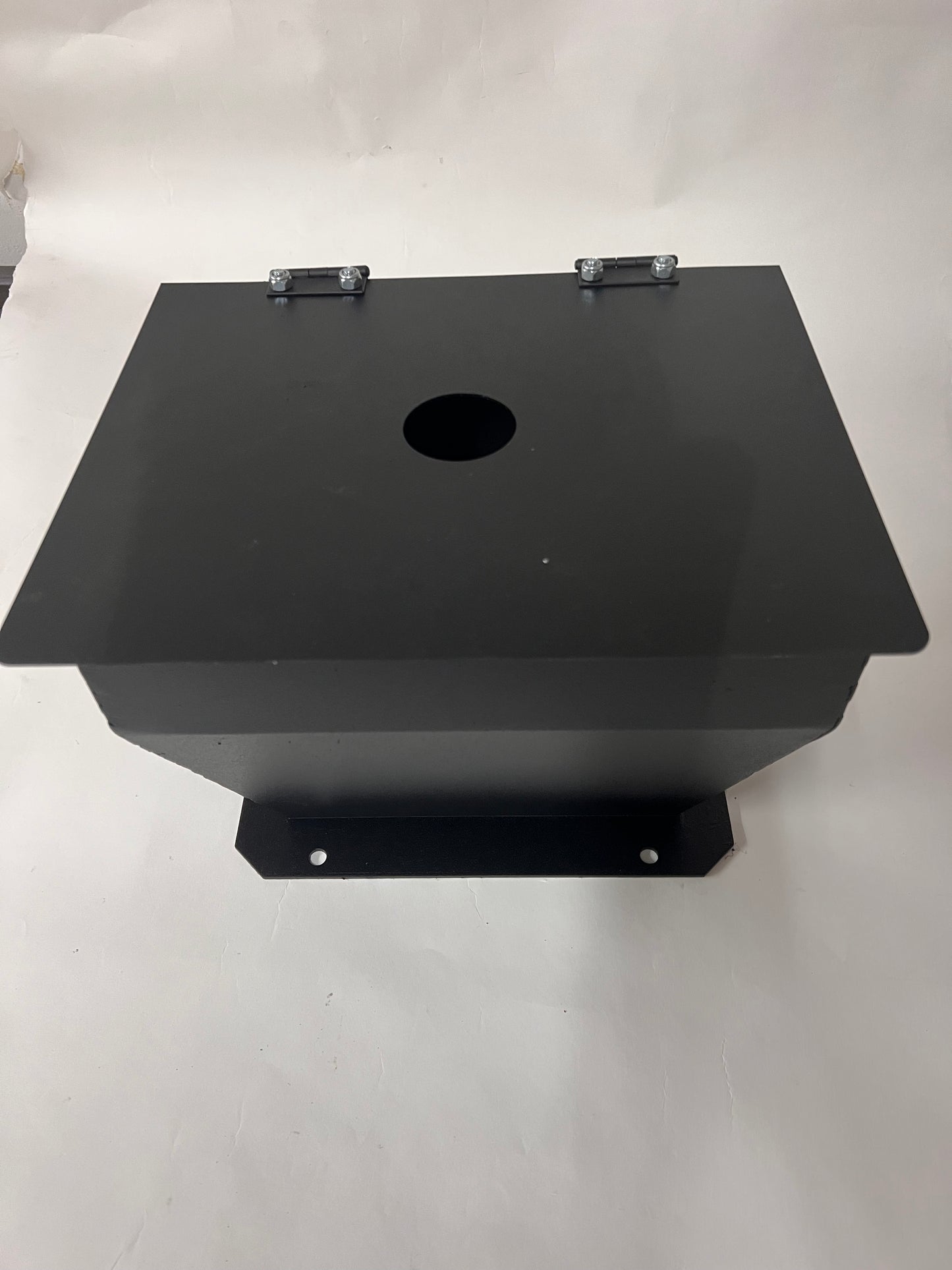

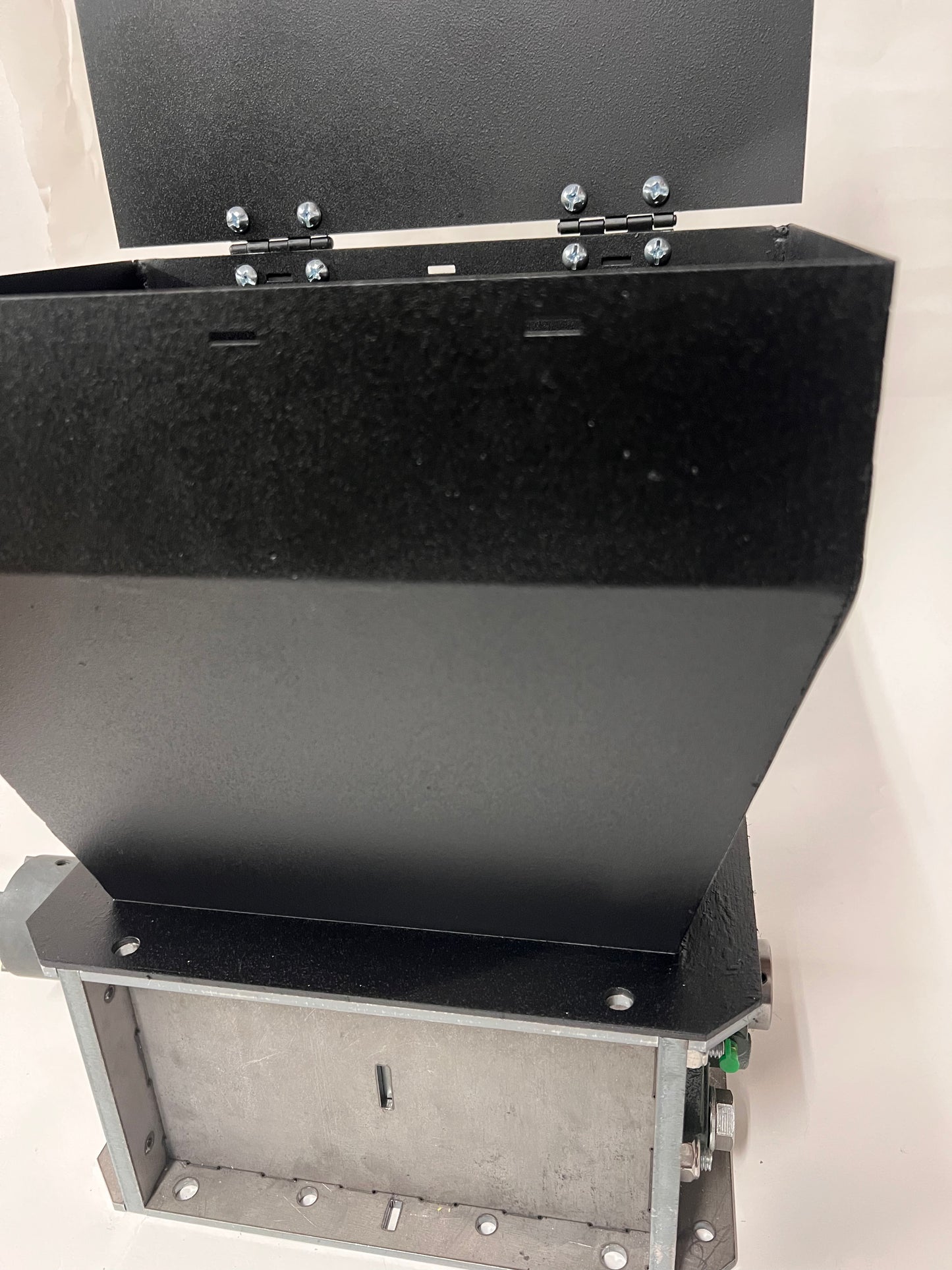

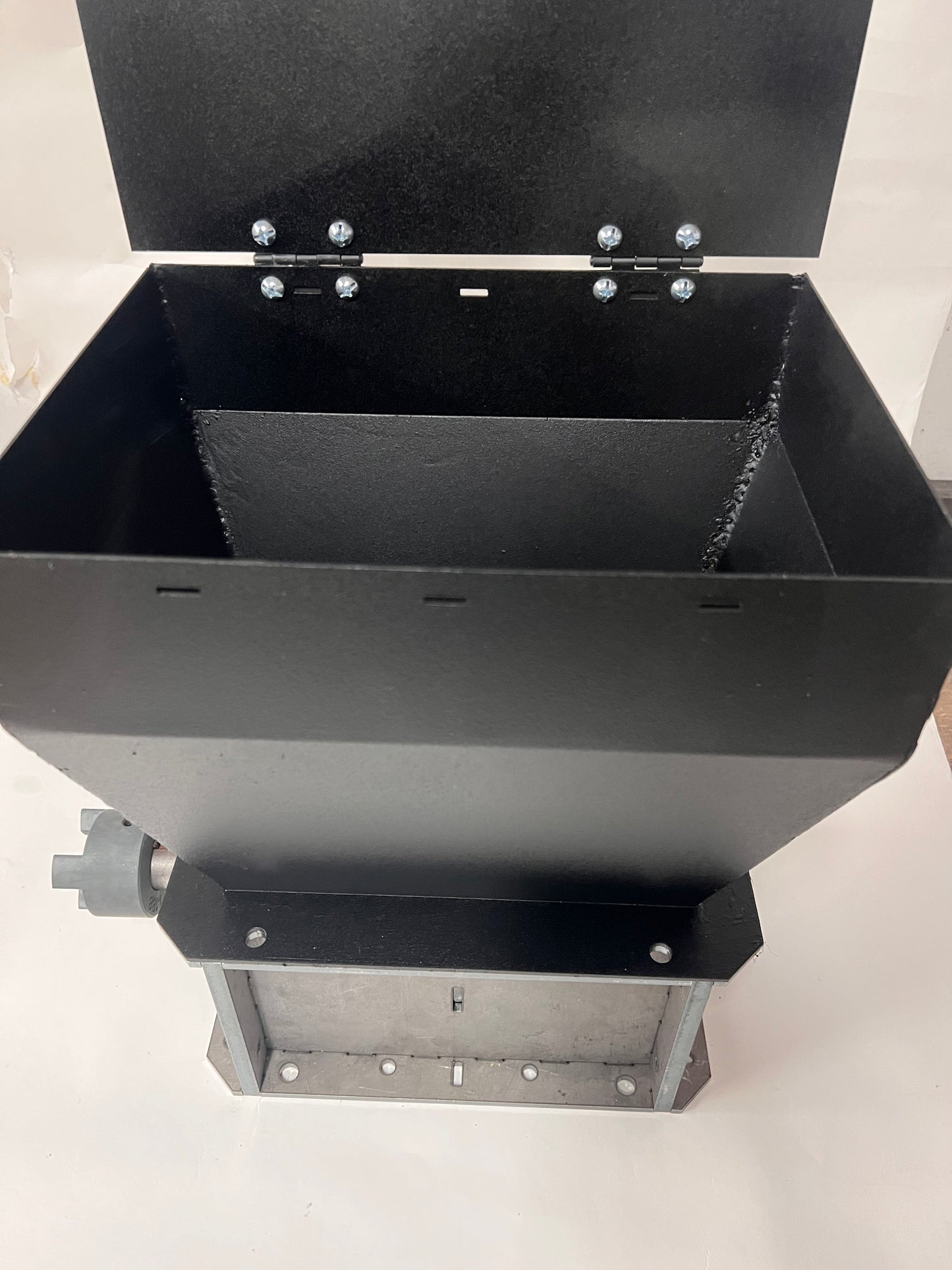

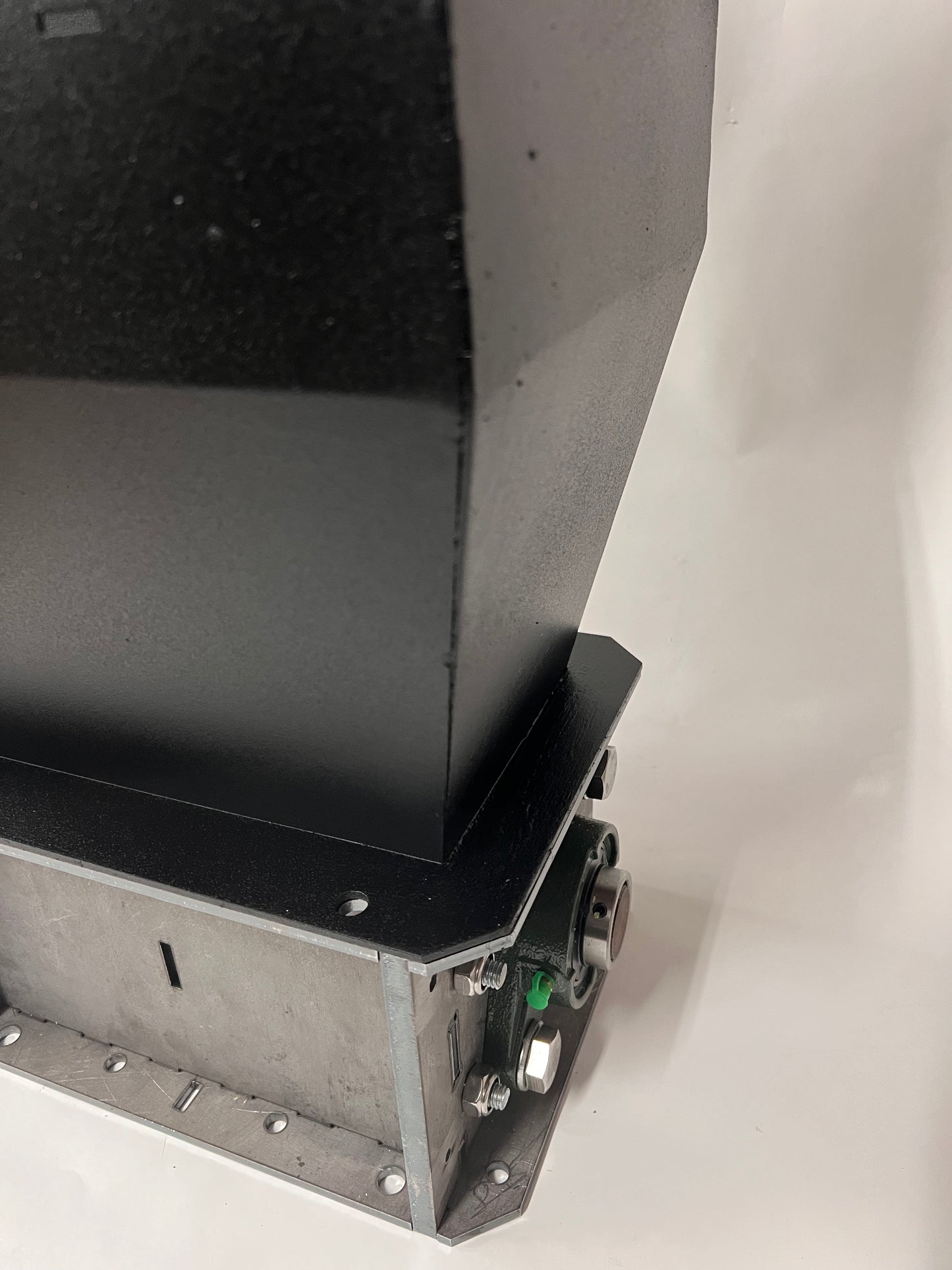

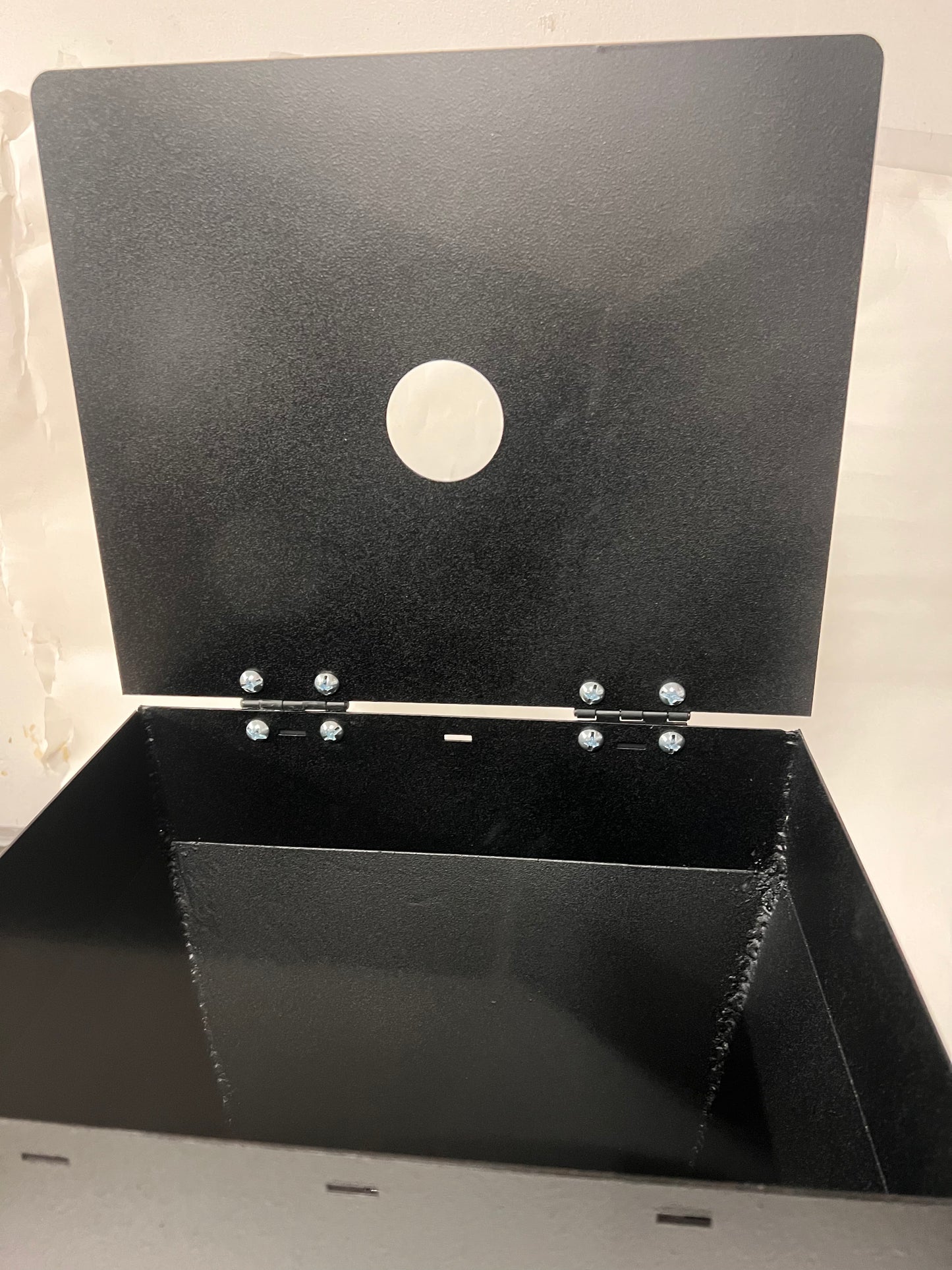

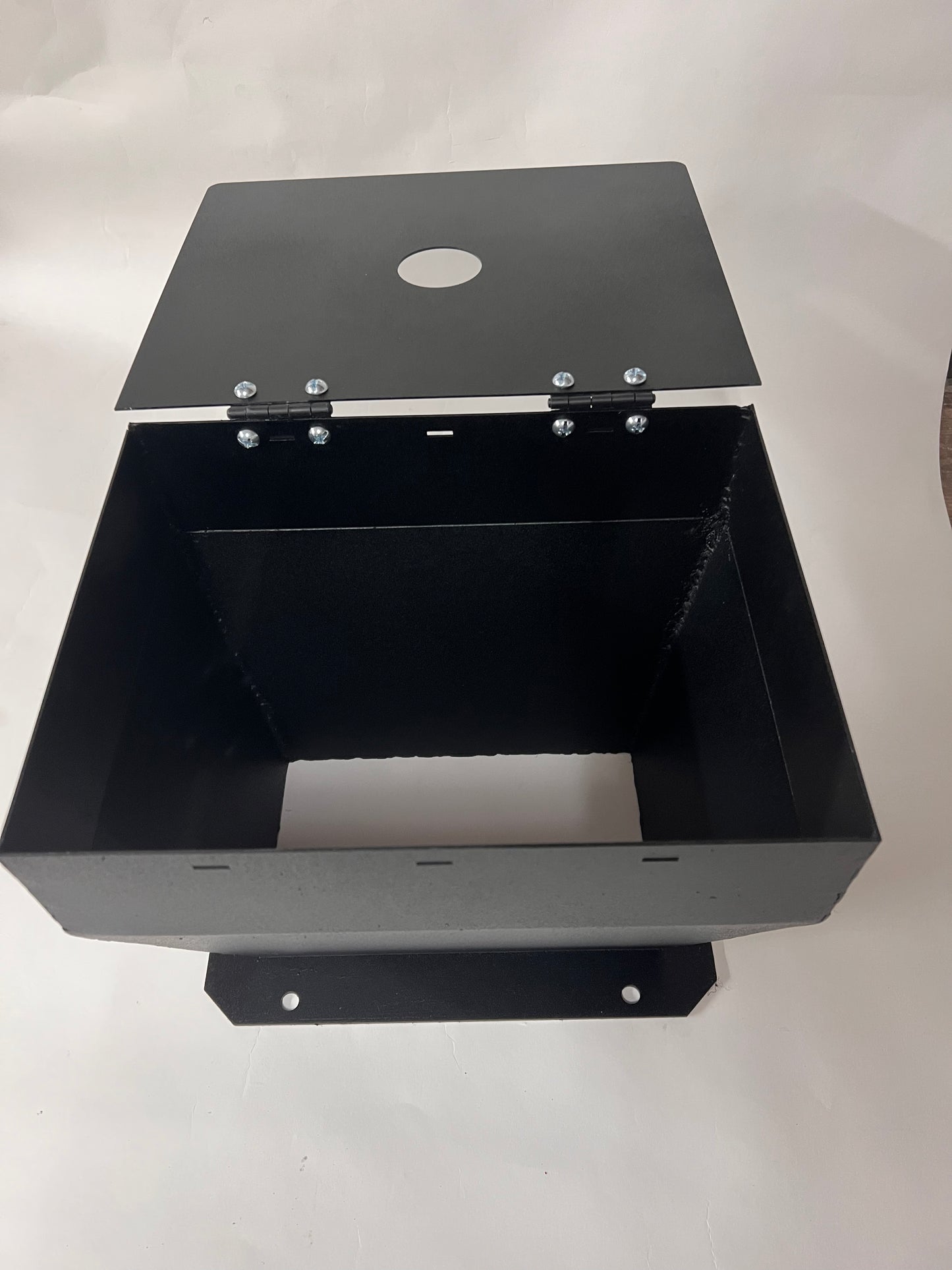

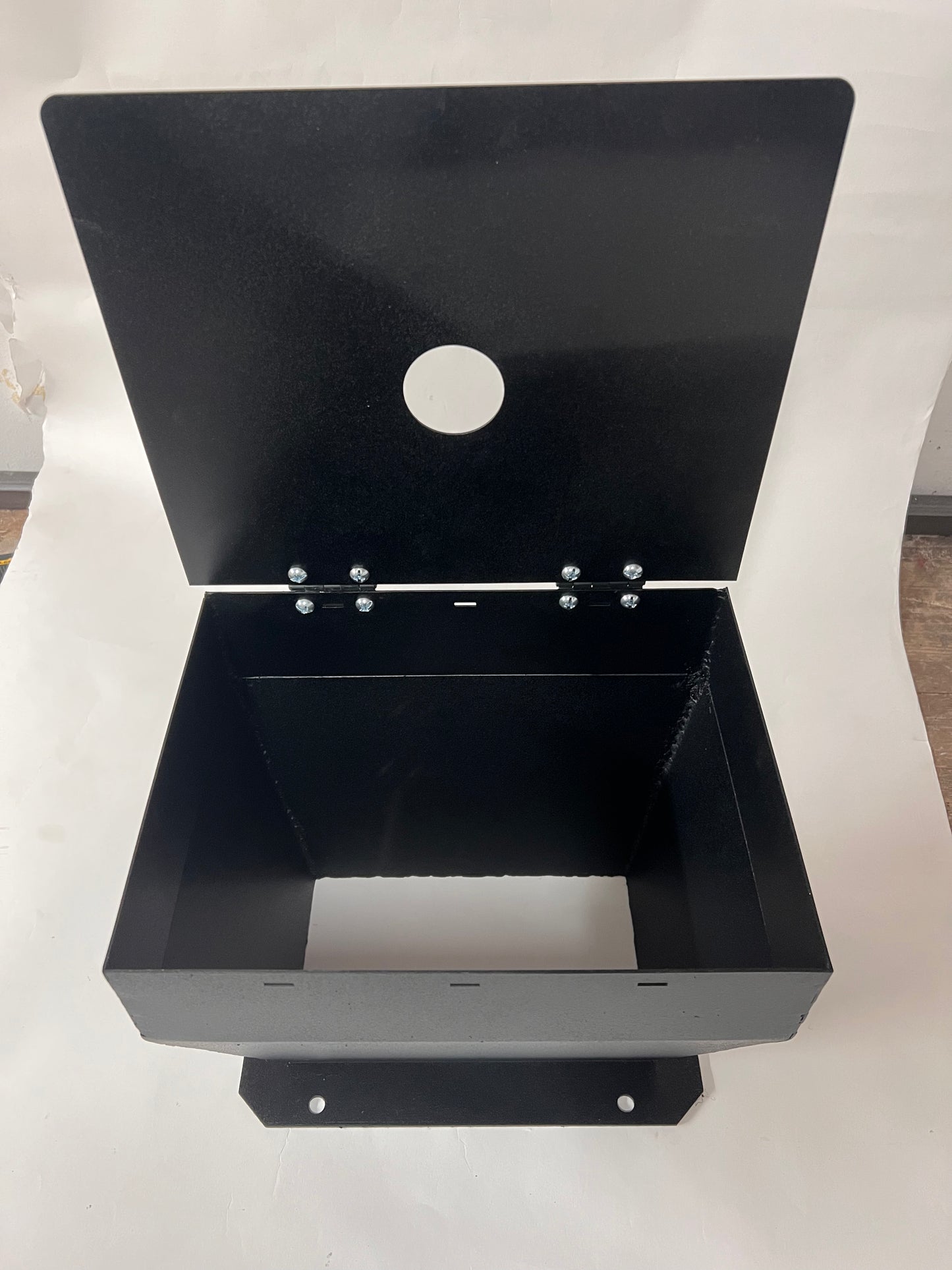

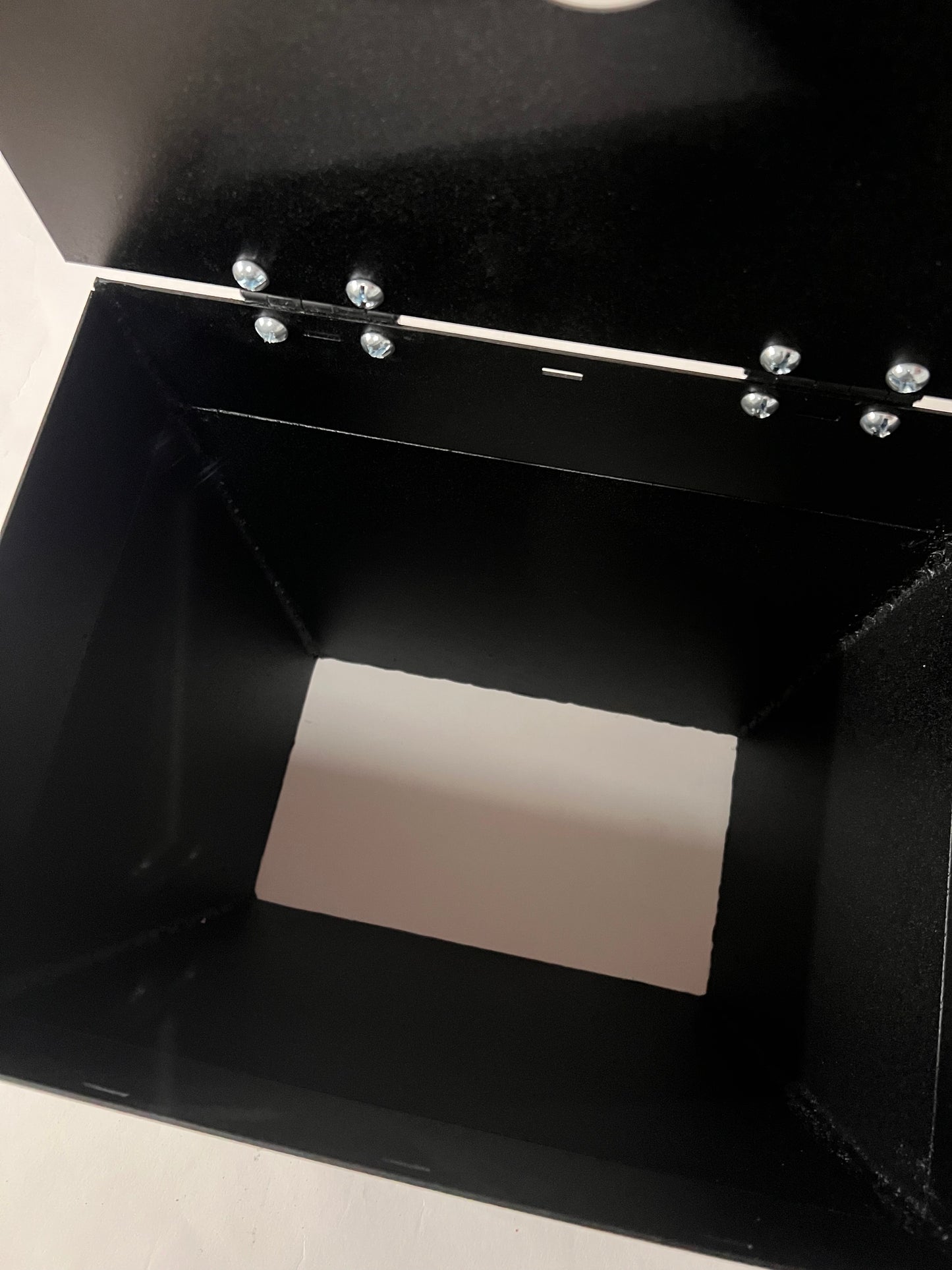

The black hopper is specifically designed for the 21-blade shredder with 3-cut rotation blades, ensuring a perfect fit. It streamlines the build process and allows for efficient operation by accommodating multiple items at once, making shredding faster and more convenient.

EN8 steel lasercut full build shipped from USA to your location with cost in mind from a proven quality service.

Overview: Introducing the Latest 21 Blade XL with a difference. strong extended Shredder, designed for efficiency, simplicity of assembly/disassembly for your maintenance needs. Ideal for extra large-scale material granulation with 3 shear cuts per shaft rotation. You can shred a variety of materials with a shredding machine, depending on its design and purpose. Here are some common materials for the Shredder to processed:

1. Many types of Plastics - Extruder granulation, water Bottles, storage Containers, plastic Pipes, Car and household smaller parts, beach waste

2. Paper and Cardboard - Documents (for confidentiality, Cardboard boxes, Office waste  Miscellaneous Materials - Foam, Leather, Insulation materials and garden waste.

Hard drive/Circuit board shredding reduction- A secondary product from destruction is the gold extraction process from harddrives plus CPU, Pin Boards and other circuit board stripped down components.

Key Features:

Design: Quality laser cut extended XL design framework with 5mm thick - 3 shear blades

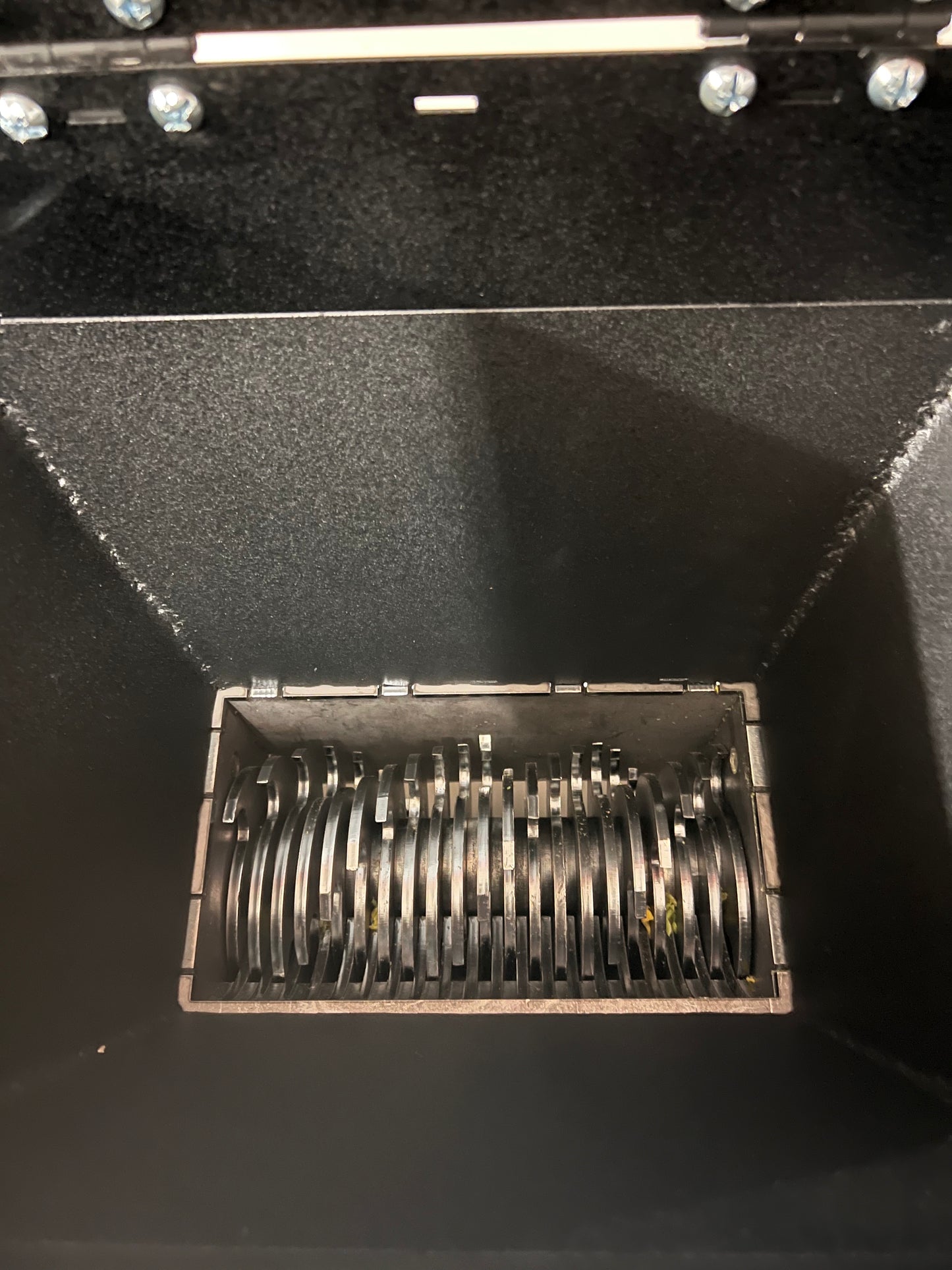

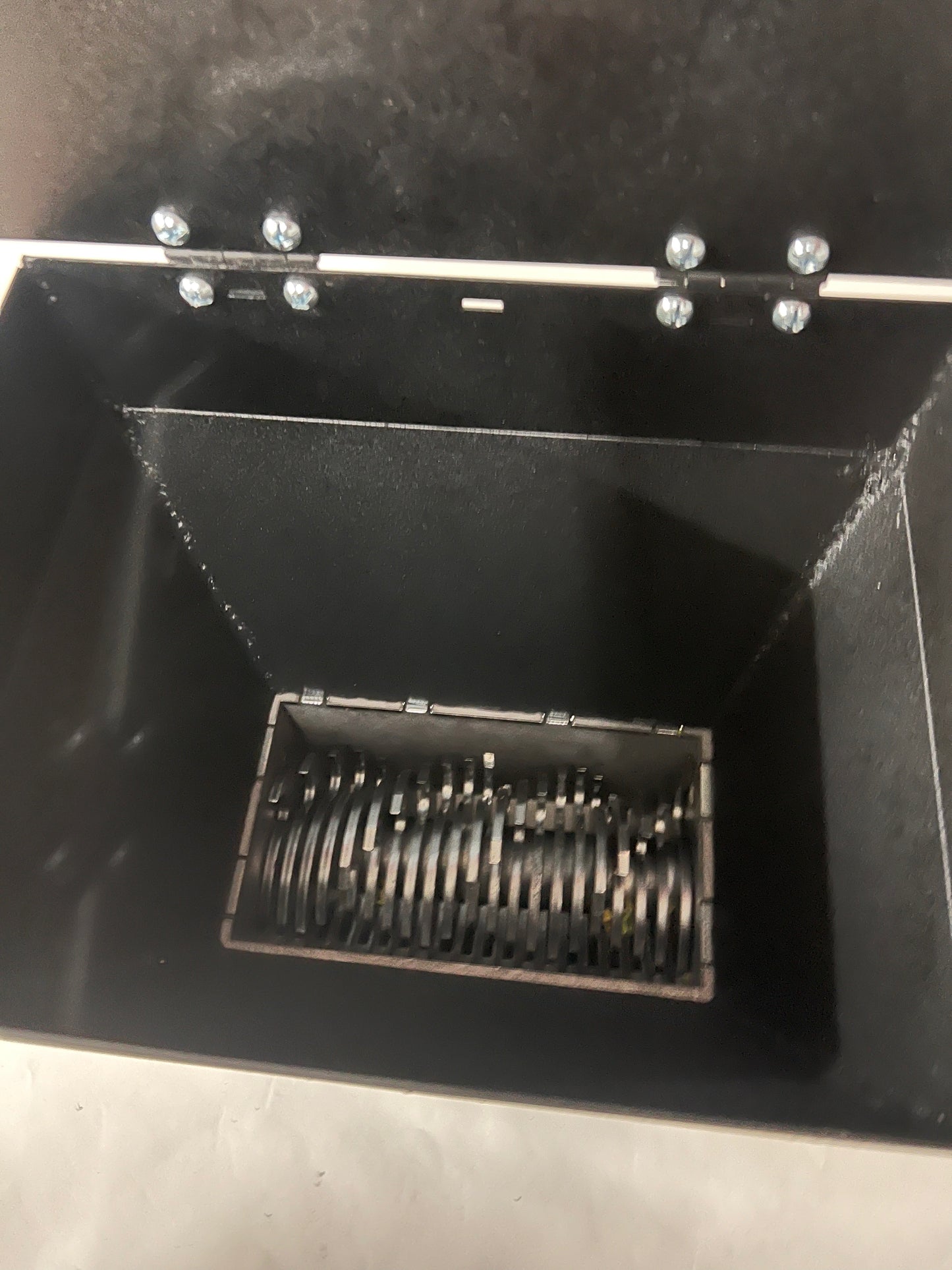

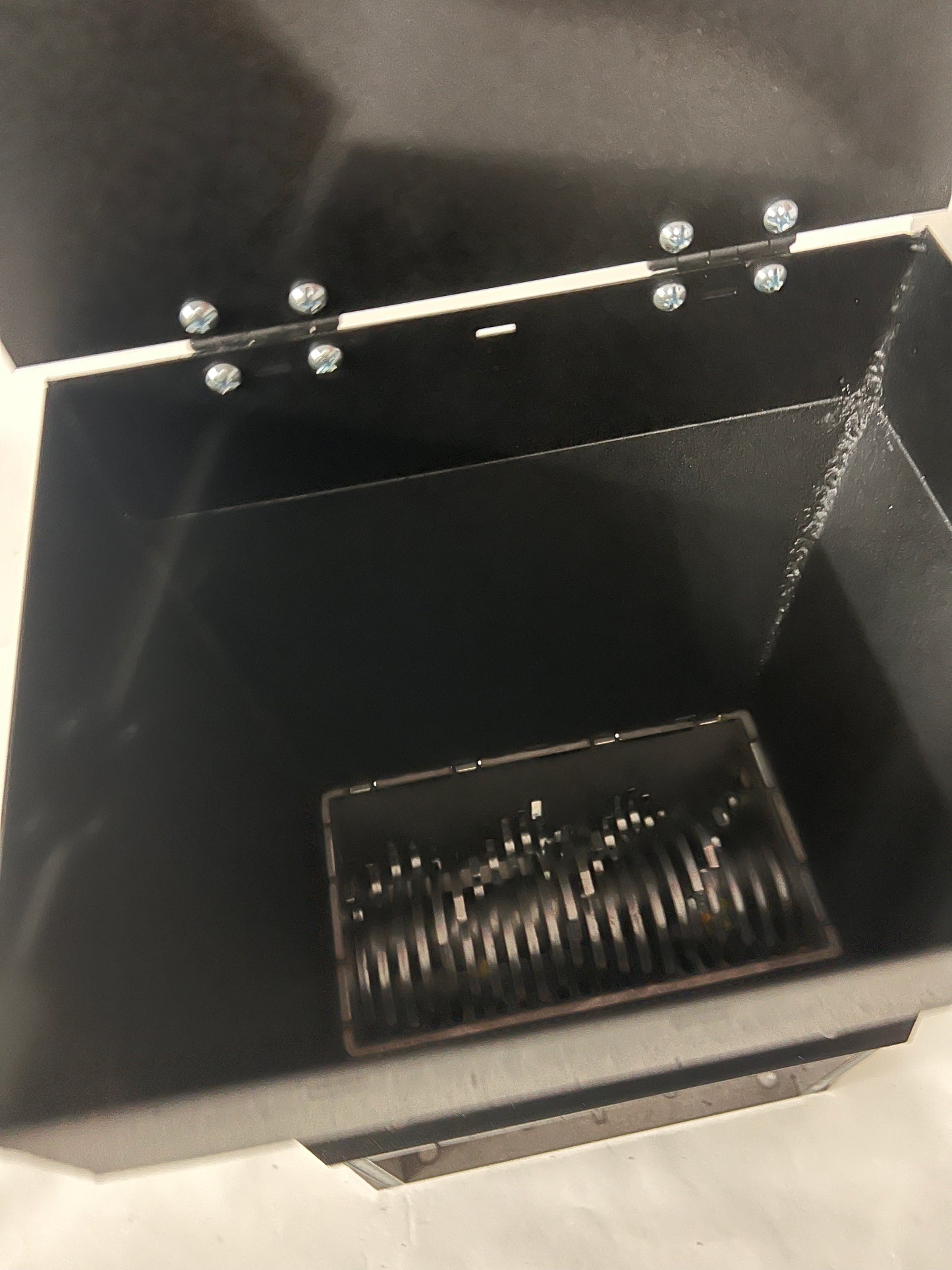

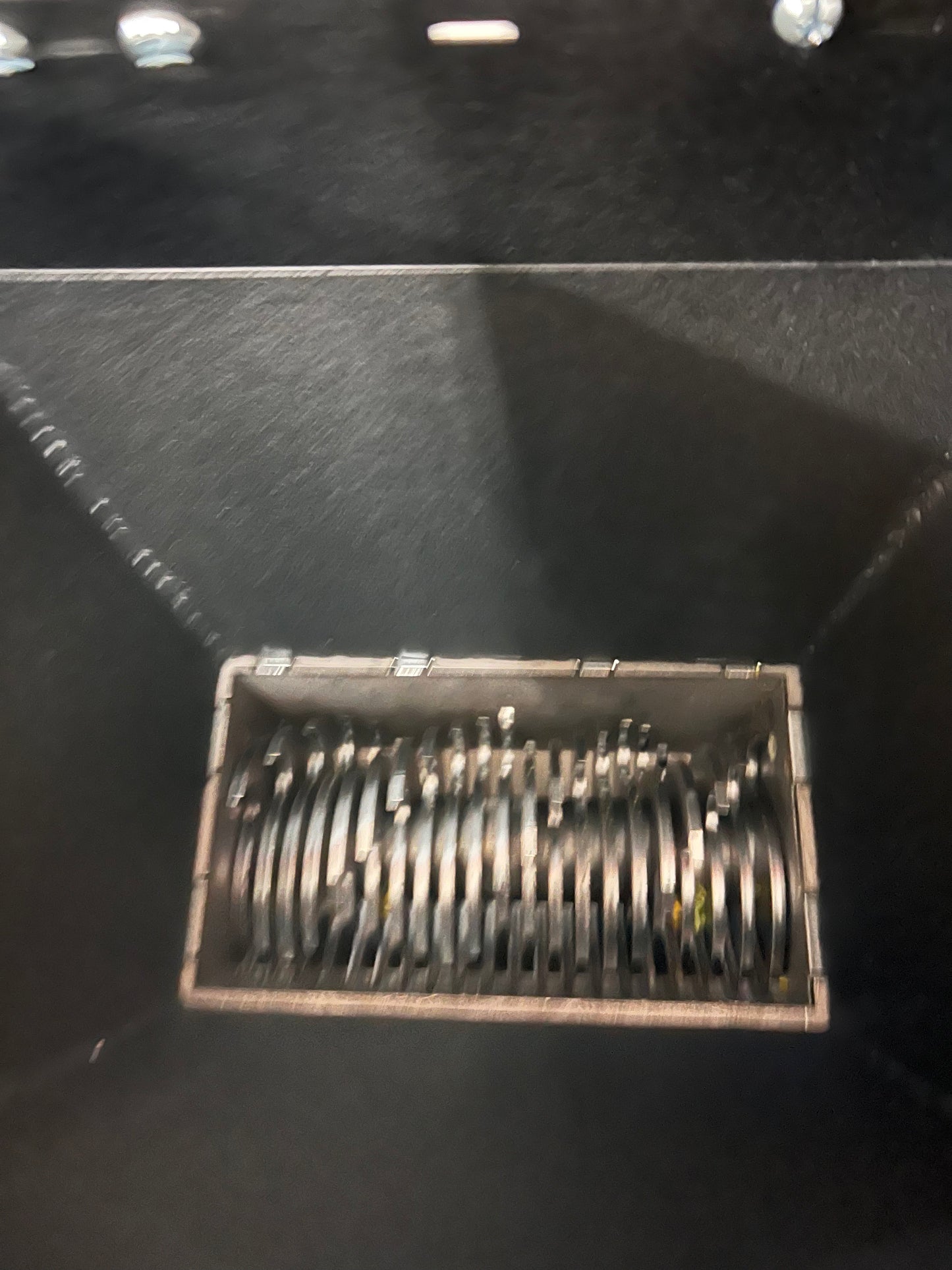

Blades: 21 x 5mm thick rotating 3 shear blades.
Material: EN8 Steel.

Dimensions: 377mm x 210mm (width) x 145mm (height).
Cutting Area: 139mm x 225mm.

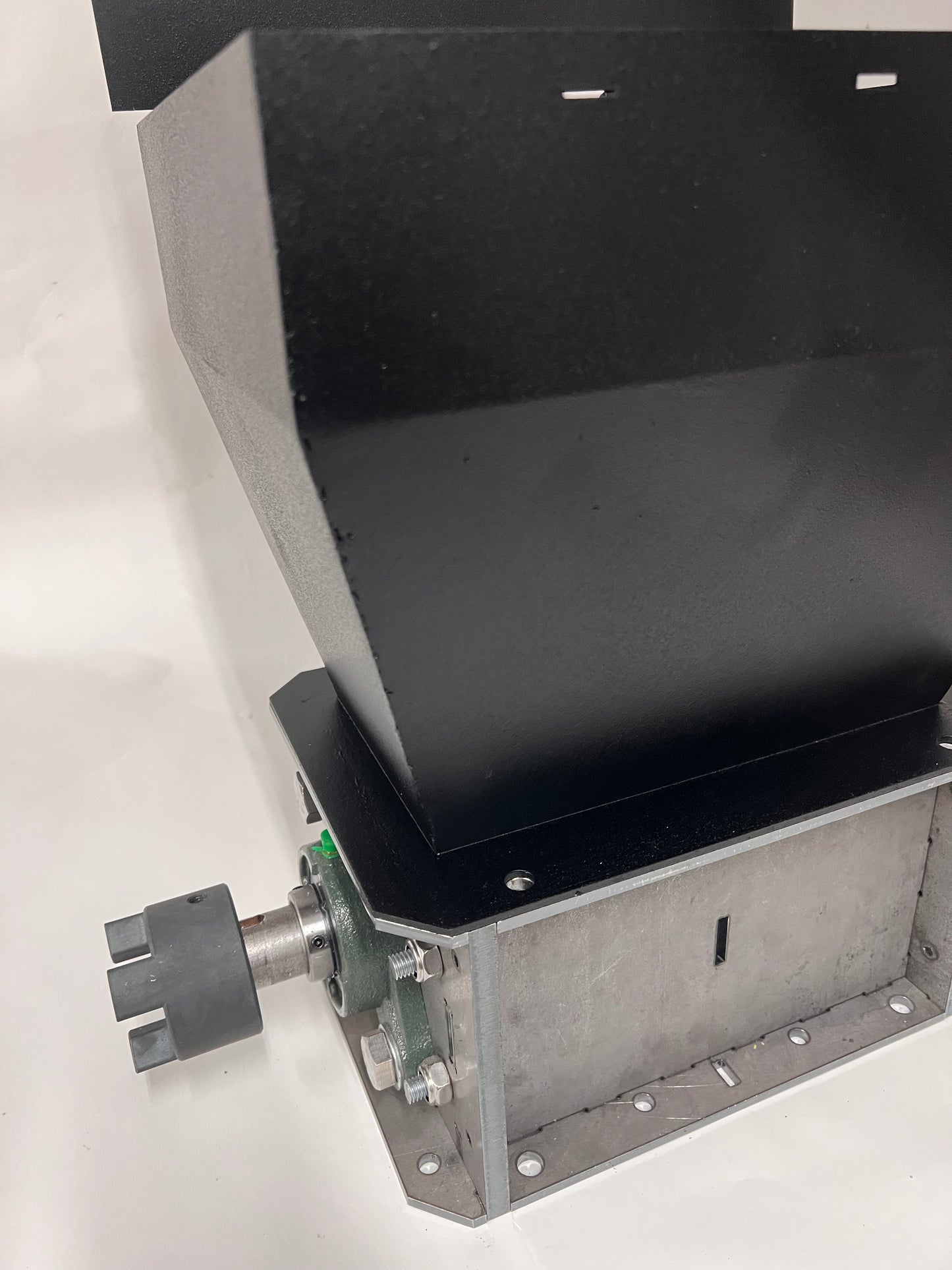

Shaft: 32mm turned EN8 Steel Hex Shaft, turned end for 30mm coupling with 8mm keyways for coupling.
Speed: Suited for low-speed operation (50-70 RPM) with high torque.
Sieve: 6mm hole Pre-welded EN8 mesh on 3mm sieve frame.

Assembly: The shredder features a simplistic modular design with clamping/compression and bolting, making it easy to assemble or disassemble for teeth cutting combinations.

Motor: Not included. Recommended single-phase 3kW RPM 1800 motor with 30:1 worm gear/gearbox for shaft rotation and excellent torque (350+Nm).

A 2KW motor RPM 1400 provides an excellent 310Nm on 30.1 ratio and 58RPM. To ensure proper motor-torque combination to avoid underpowering or overpowering issues. Torque calculator available on request.

Coupling: LoveJoy L100 or L110 couplings with spider shock absorbers are highly recommended for connecting the gearbox to the shredder shaft (couplings not included).

Assembly Tools Required:

• M14 socket and wrench
• M10 socket and wrench
• Pair of grips or mole grips
• Adjustable spanner for M10 nuts
• 3mm hexagonal key for bearing set screws
