Complete Shredder Kit – Version 3.3 (All Parts Included) Ready

Complete Precious Plastic Shredder Kit – Version 3.3 (All Parts Included)

This is a fully equipped PP shredder machine kit (V3.3) with all essential components included. Use your own frame, mount the system, and you’re ready to start shredding.

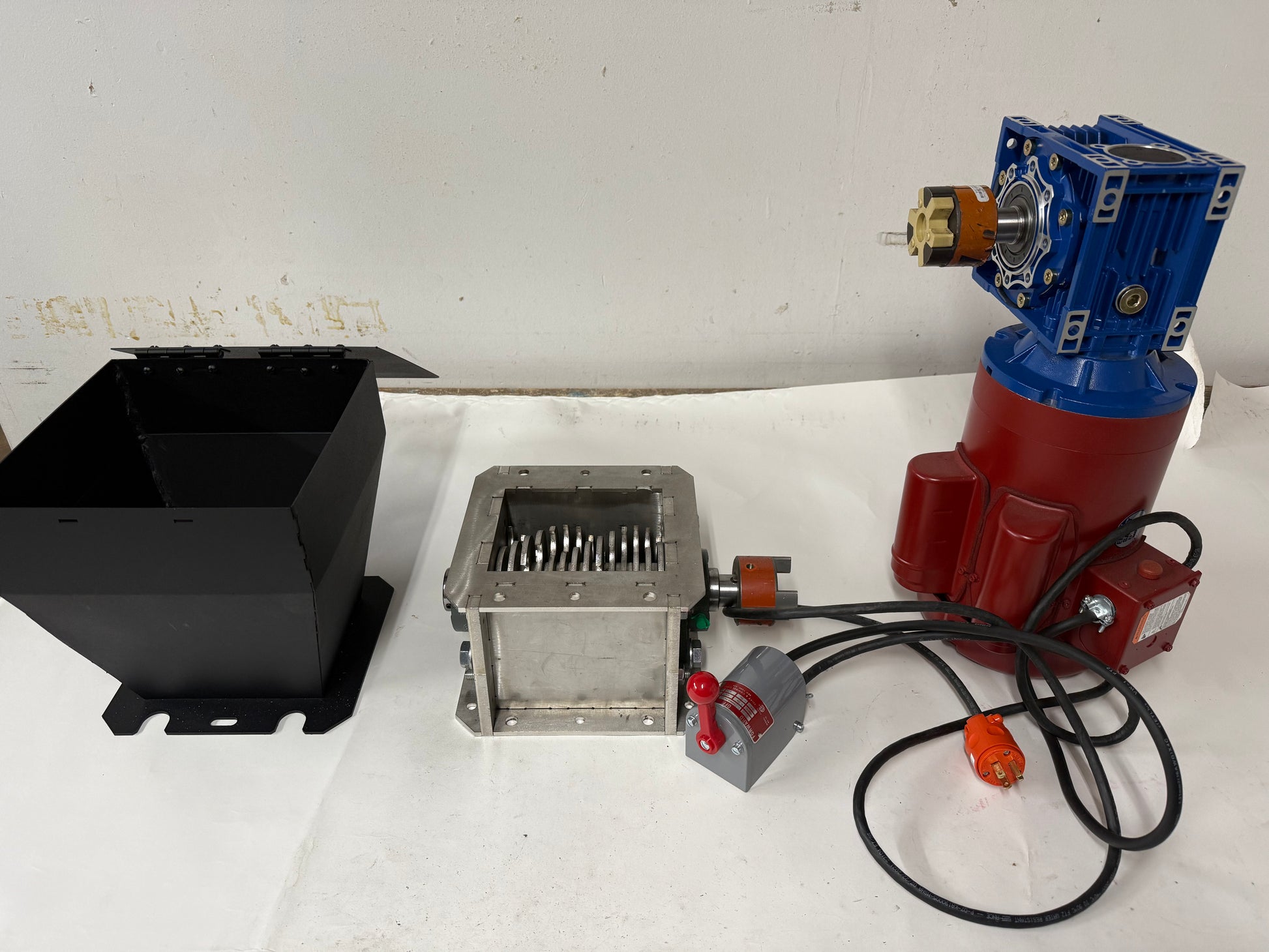

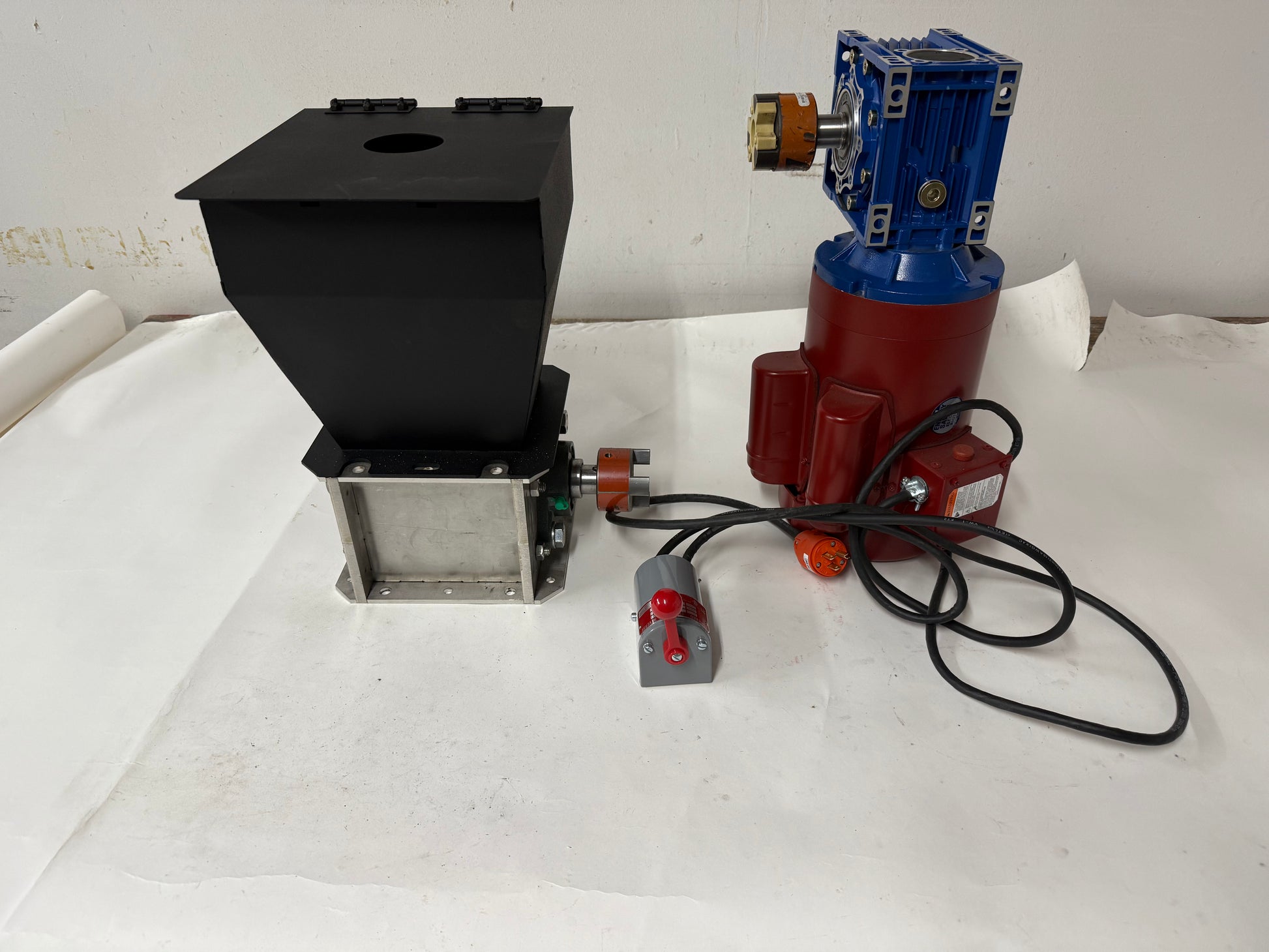

What’s Included:

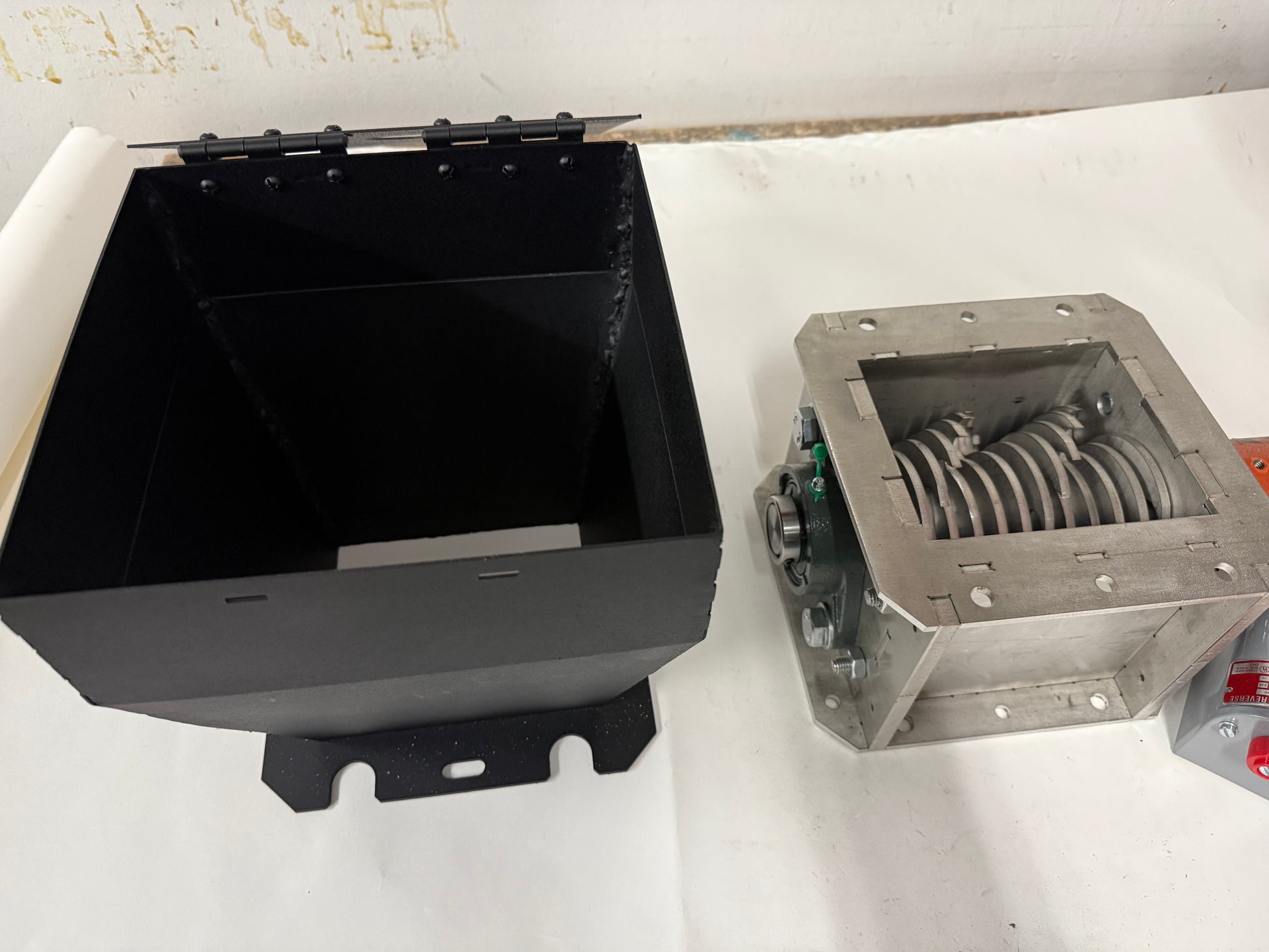

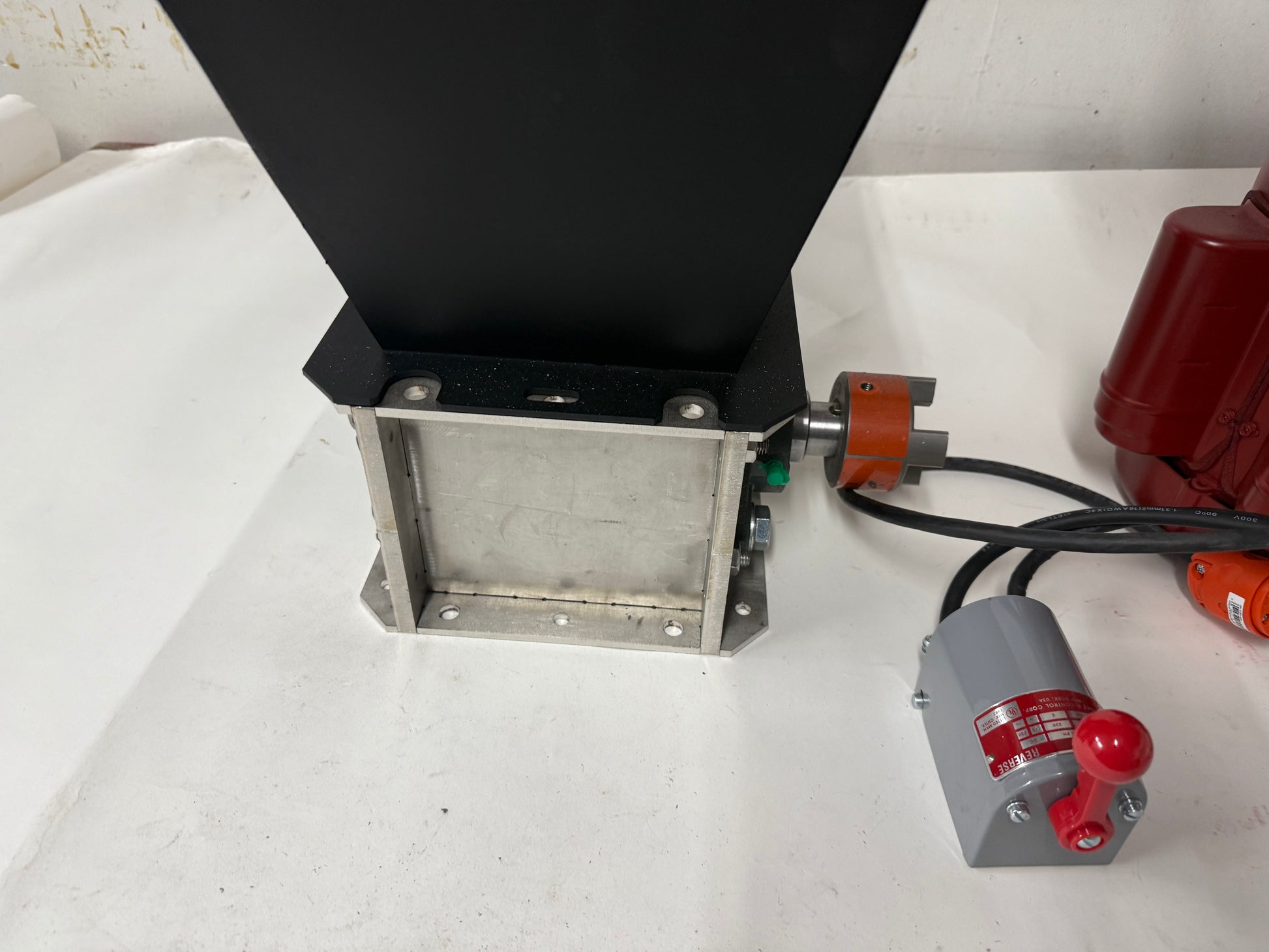

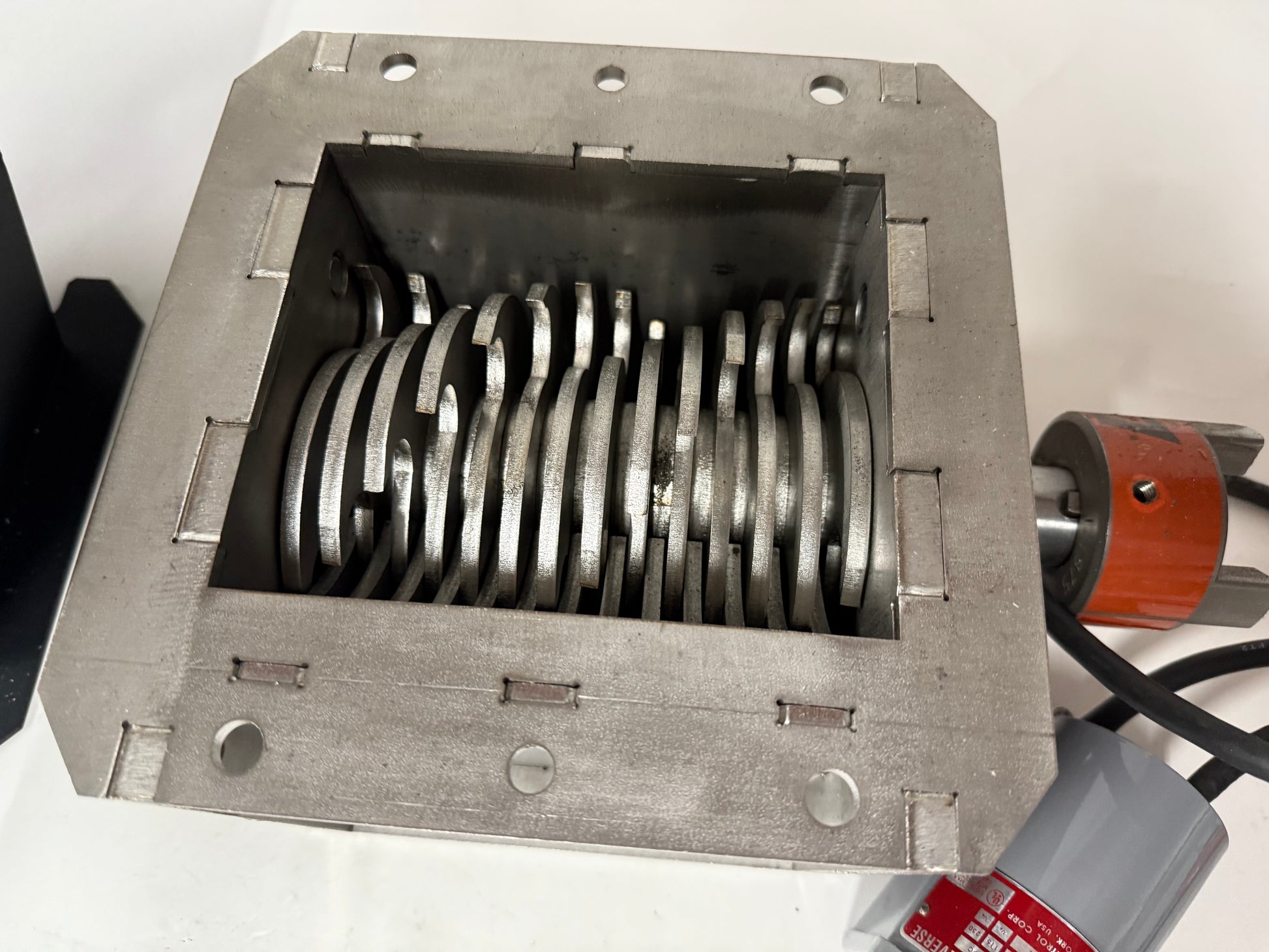

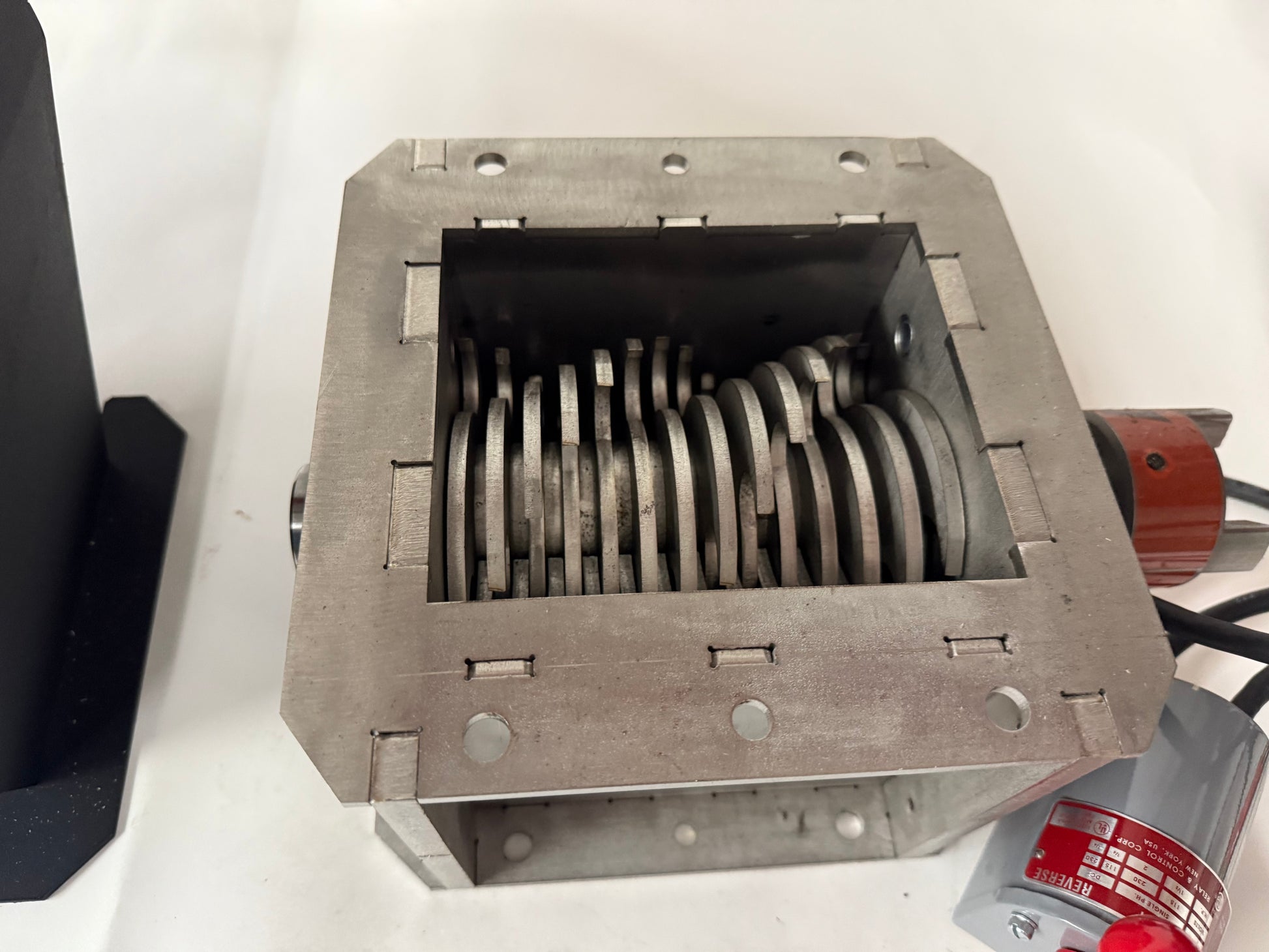

1. Shredder Box (Version 3.3)

• V3 shaft (1.18")
• 5mm or 10mm sieve for consistent output

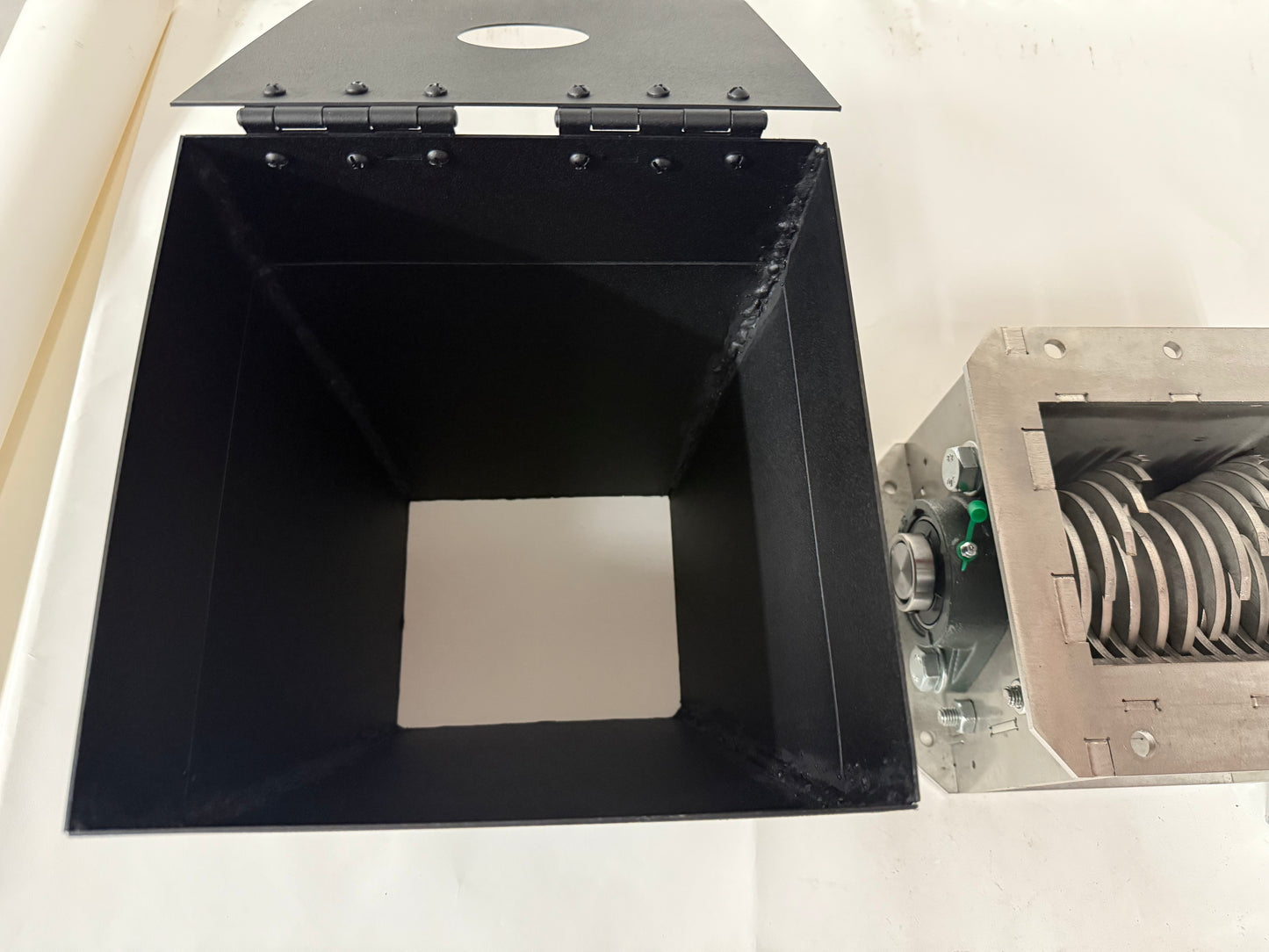

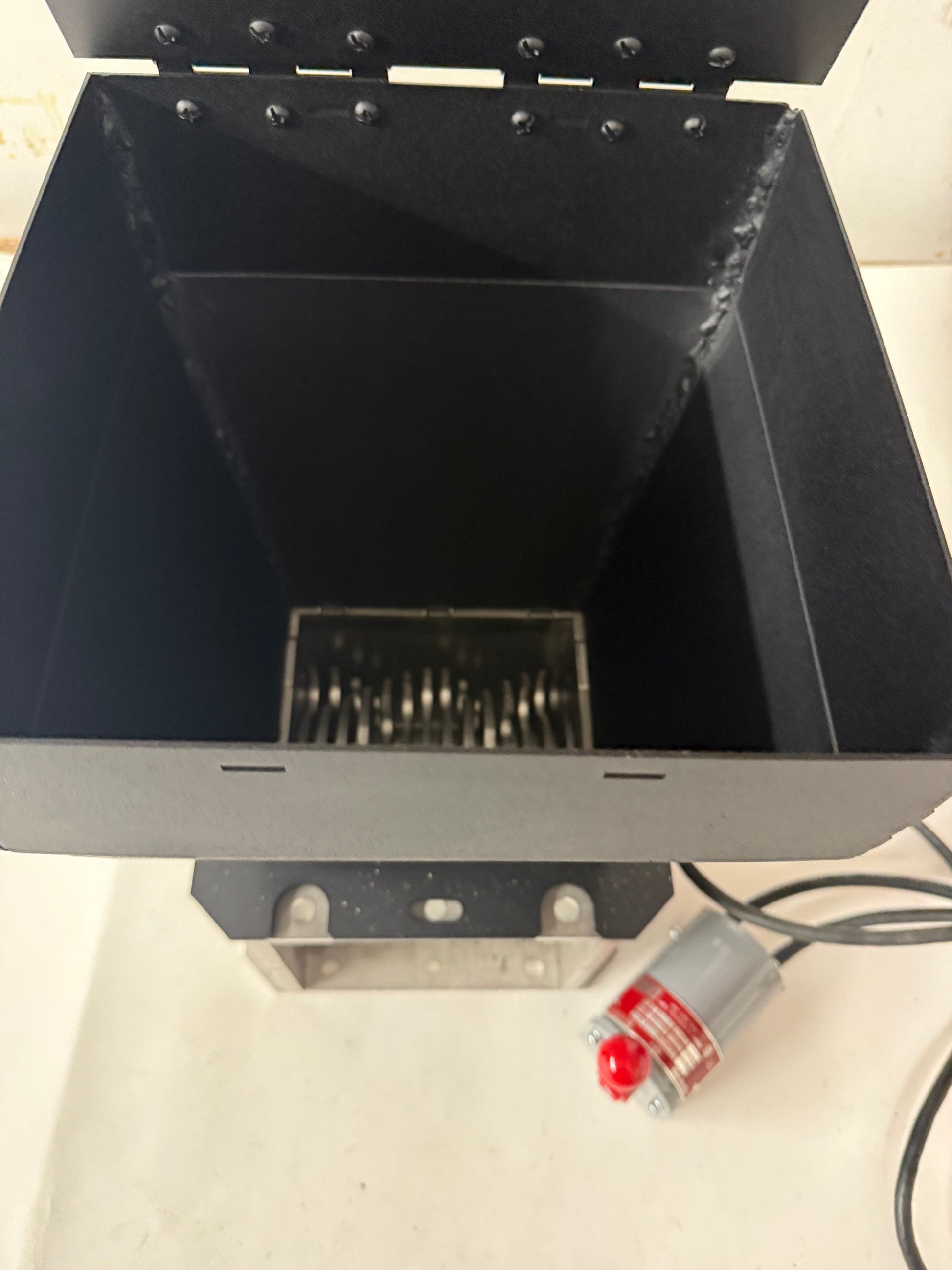

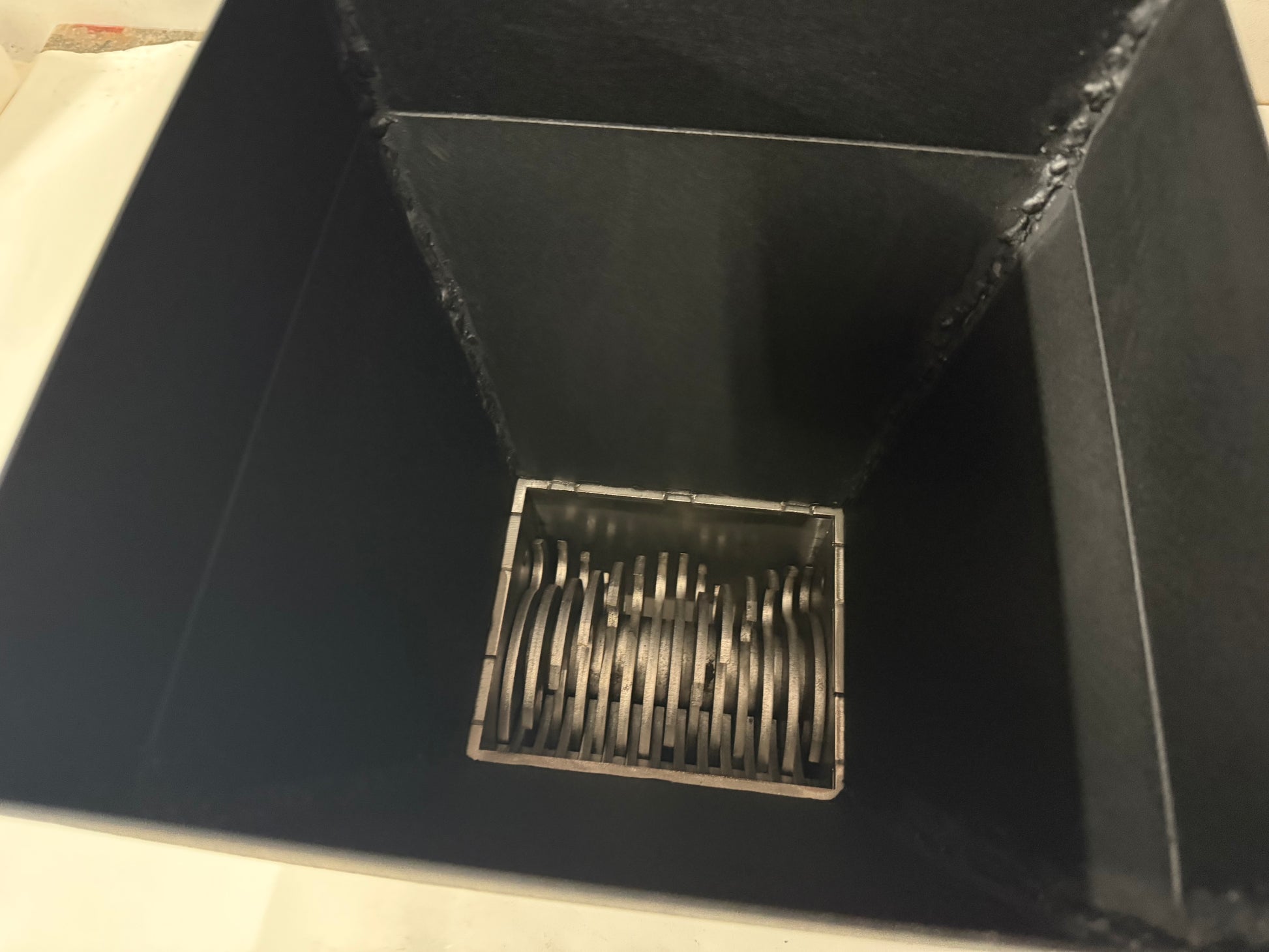

2. Steel Hopper

• Durable black metal hopper
• Includes protective lid

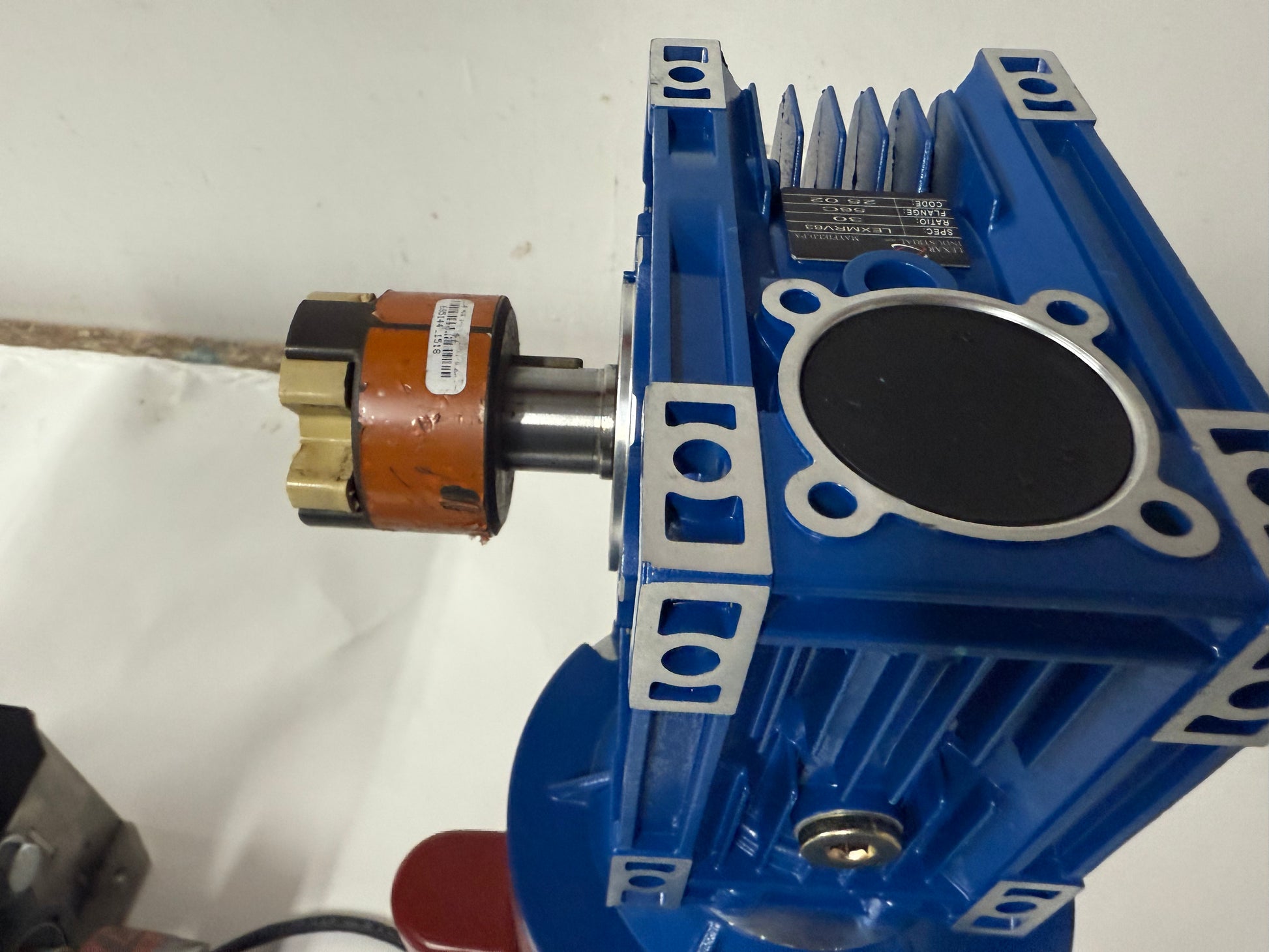

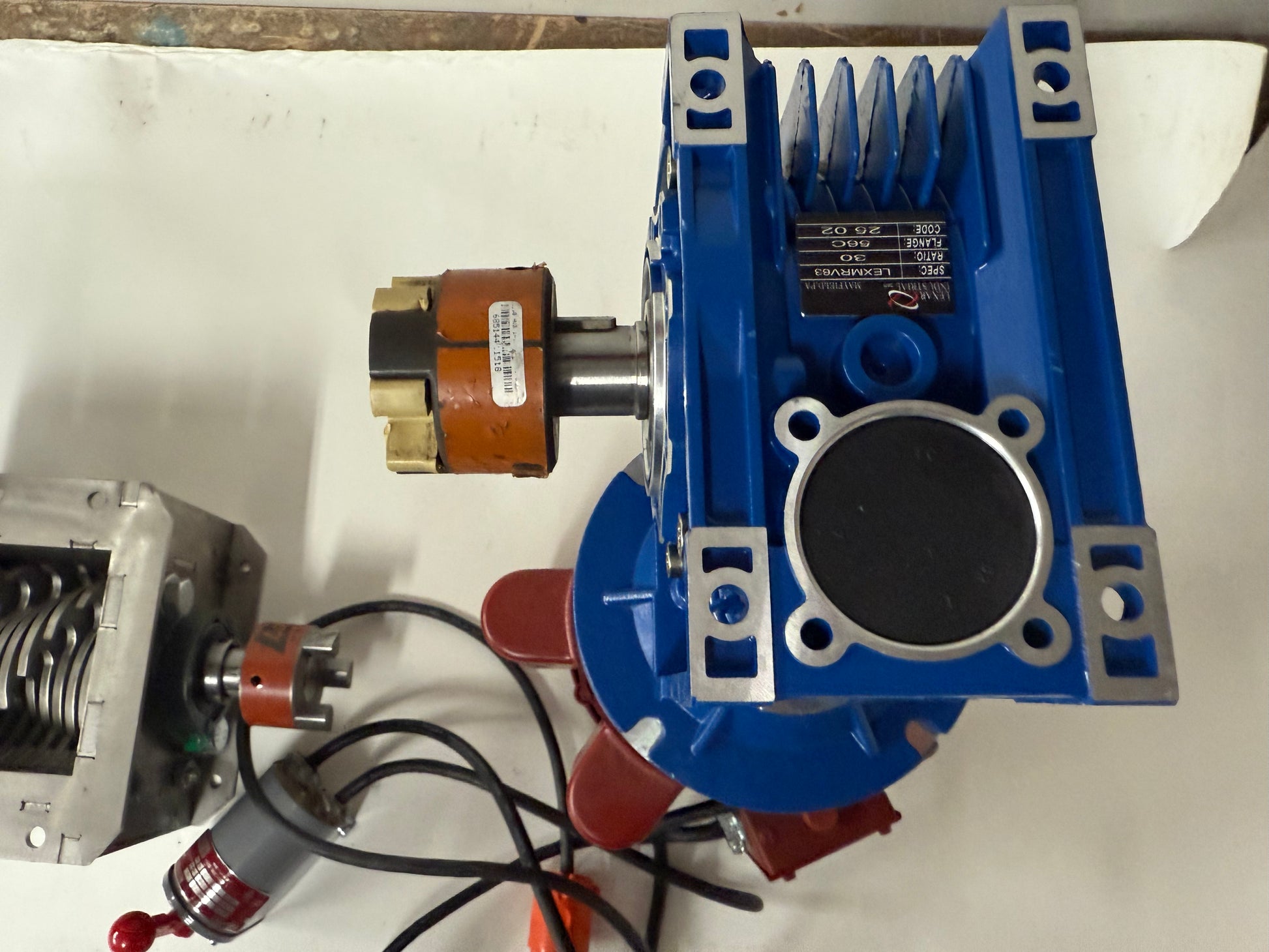

3. Worm Gear Reducer

• Worldwide Electric CALM63-S
• Single output shaft
• Designed for CALM Series 63mm aluminum gear reducers

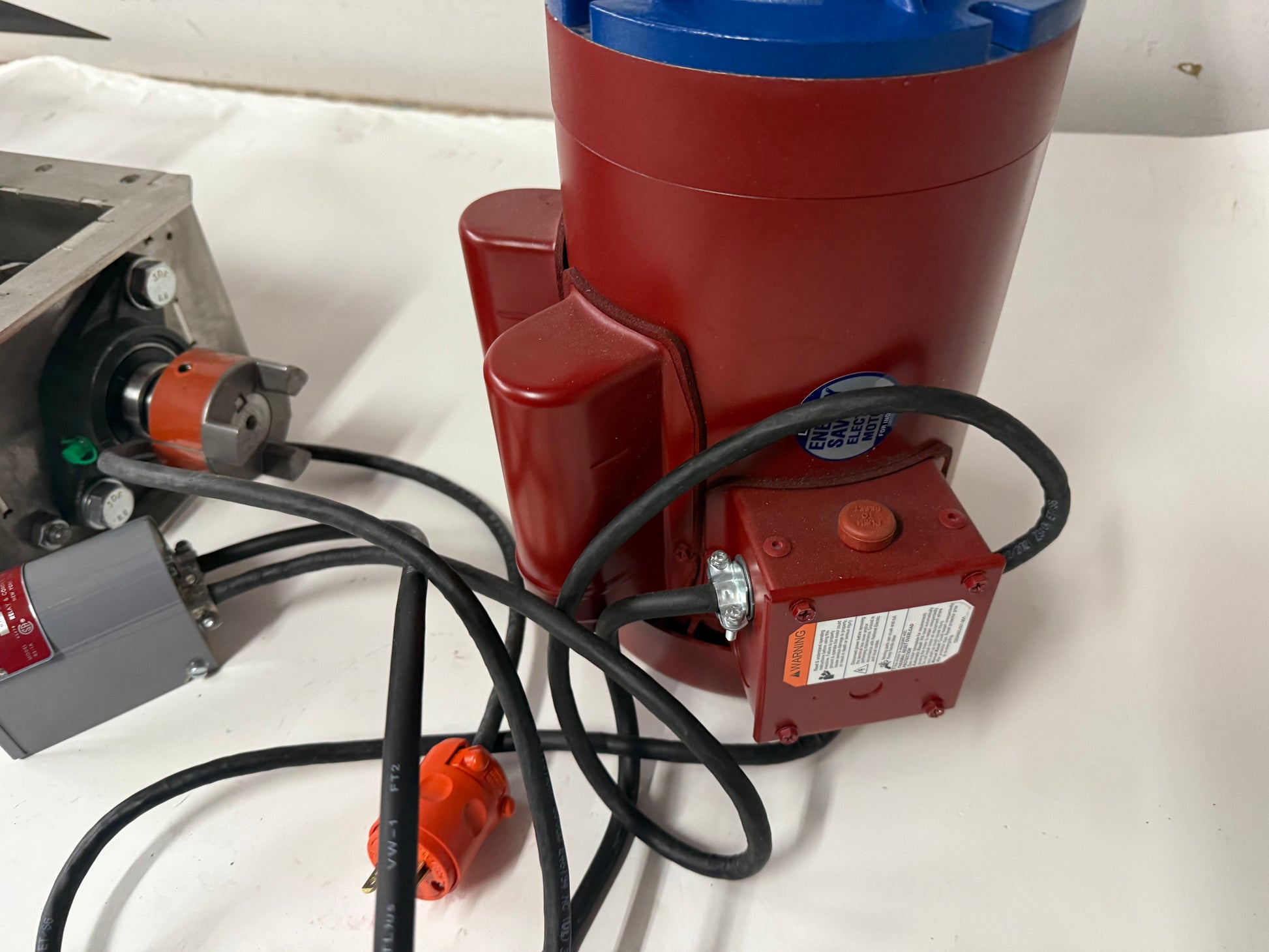

4. Electric Motor (Farm Duty)

• 1.5 HP, single-phase
• Capacitor start/run design
• Voltage: 115 / 208–230V AC
• 1,725 RPM
• Totally enclosed fan-cooled (TEFC)
• Continuous duty, horizontal mount
• CW/CCW rotation capability

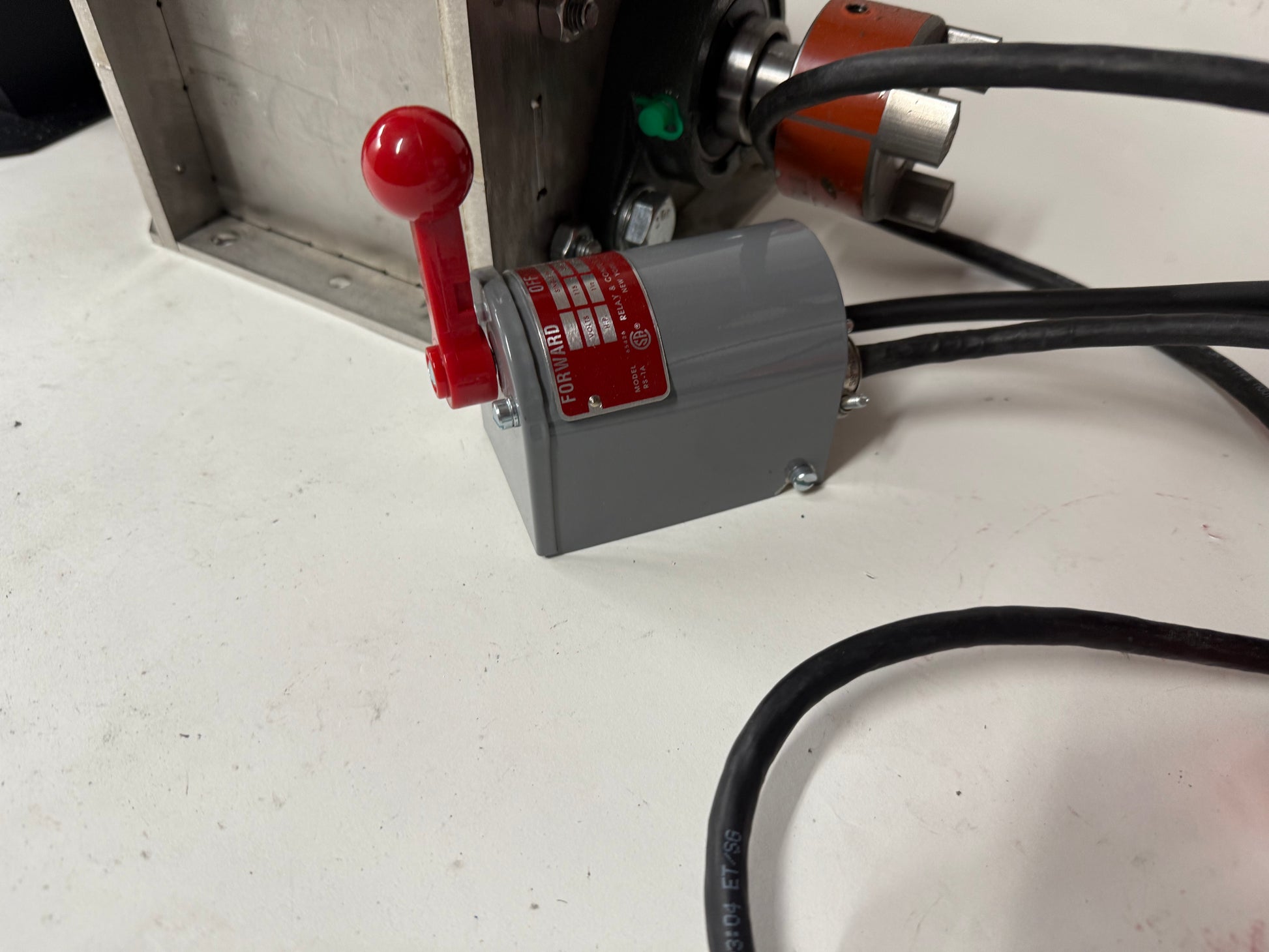

5. Drum Reversing Switch

• 1.5 HP @ 115V / 2 HP @ 230V
• Enables forward and reverse operation ( already wired to motor, ready to go )
• Compact and durable design

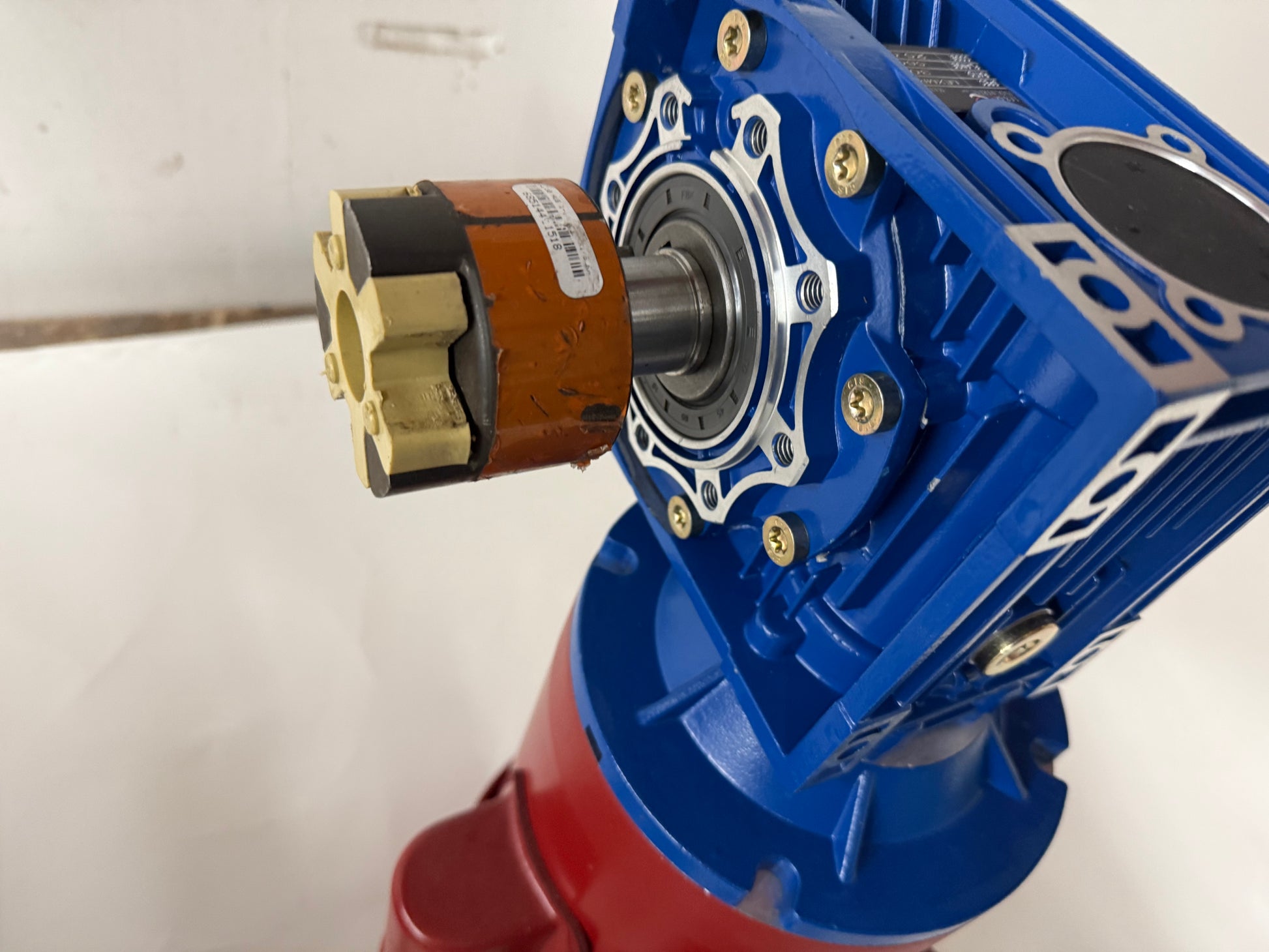

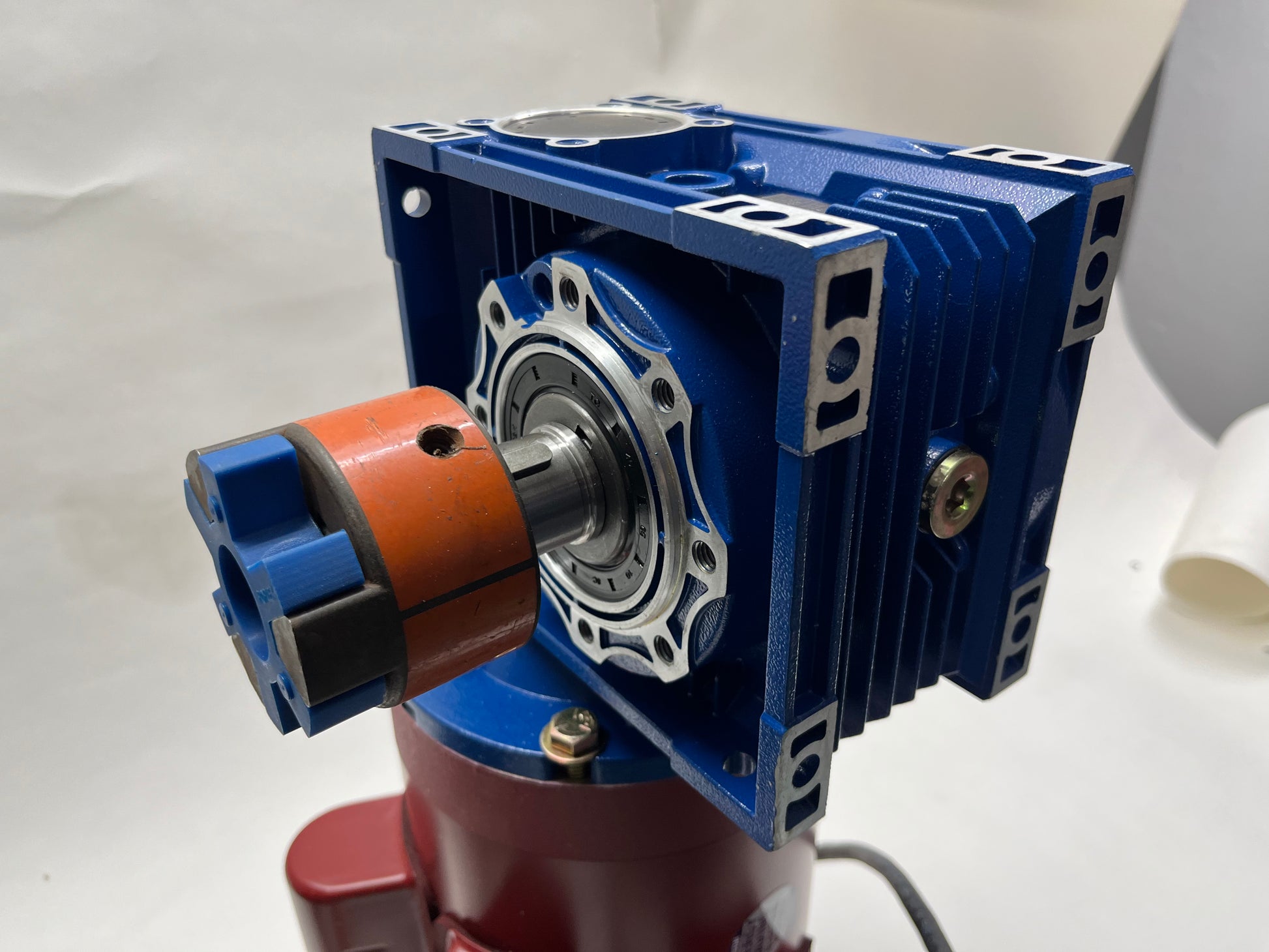

6. Lovejoy Coupling

• Model L-100
• 1-3/16" bore (1.1875")

How It Works:

Build your own frame, mount all components, connect the system, and start shredding plastic and other materials efficiently.

If you have any questions or need guidance with setup, feel free to reach out — I’m here to help.

Thank you!
