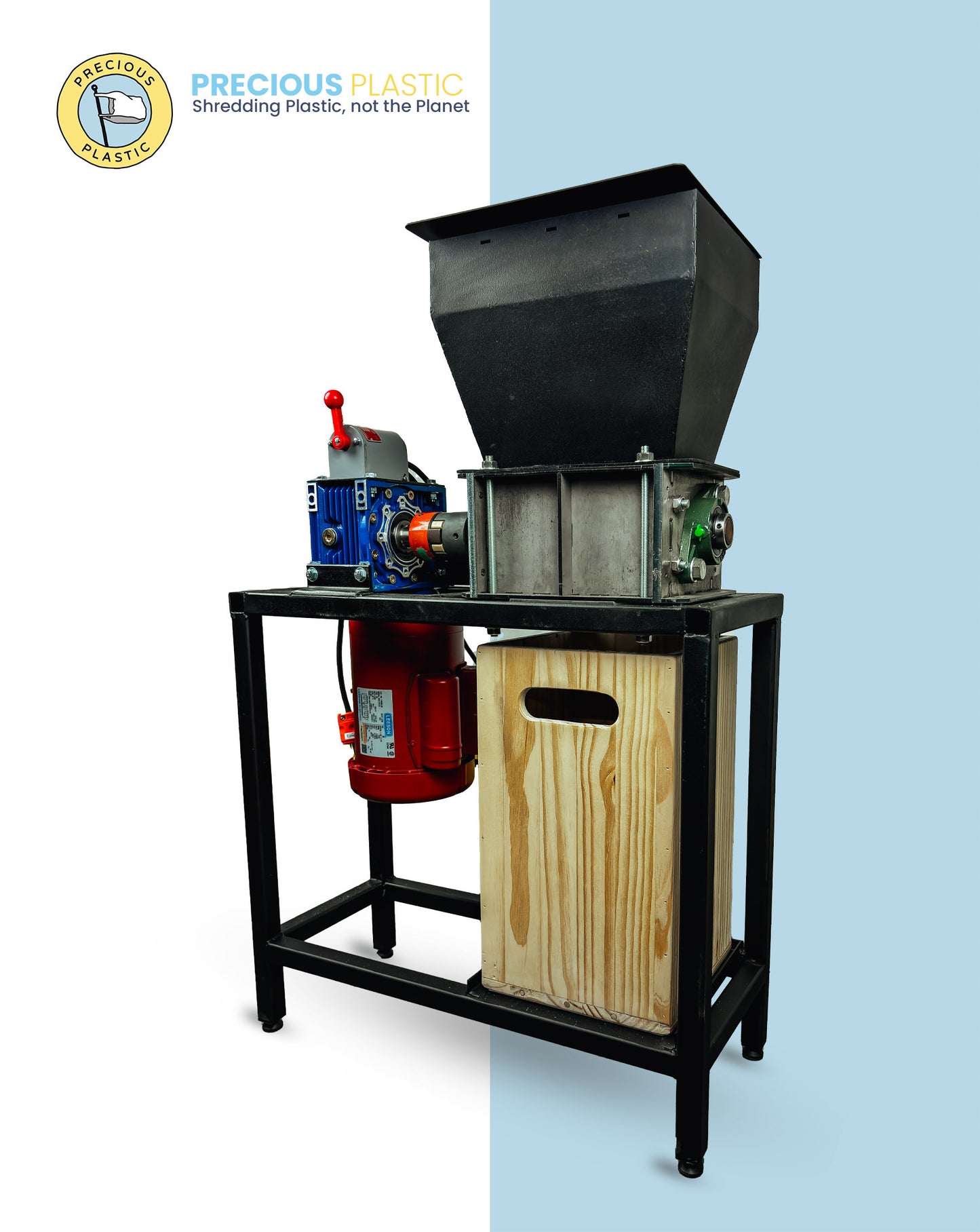

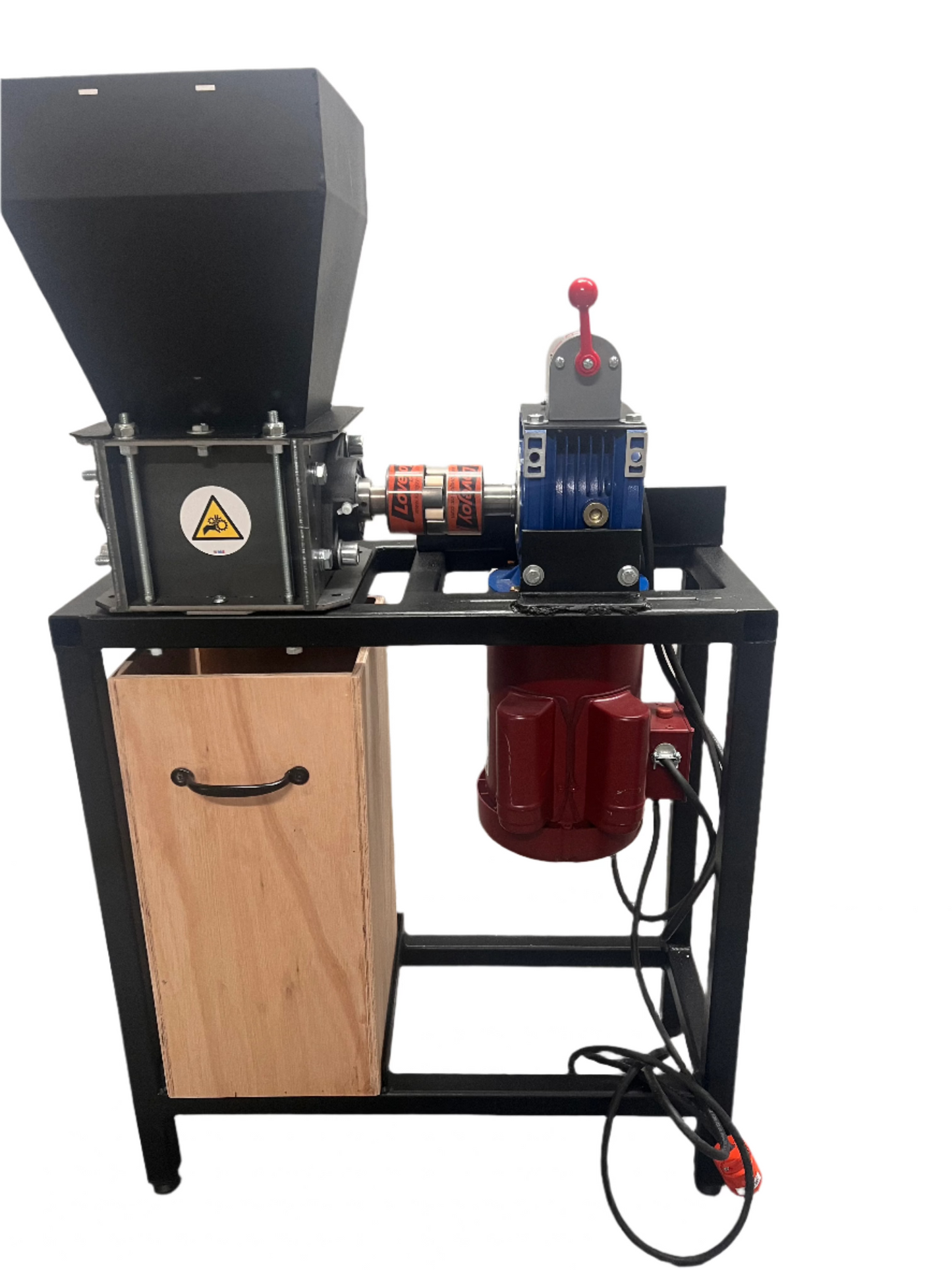

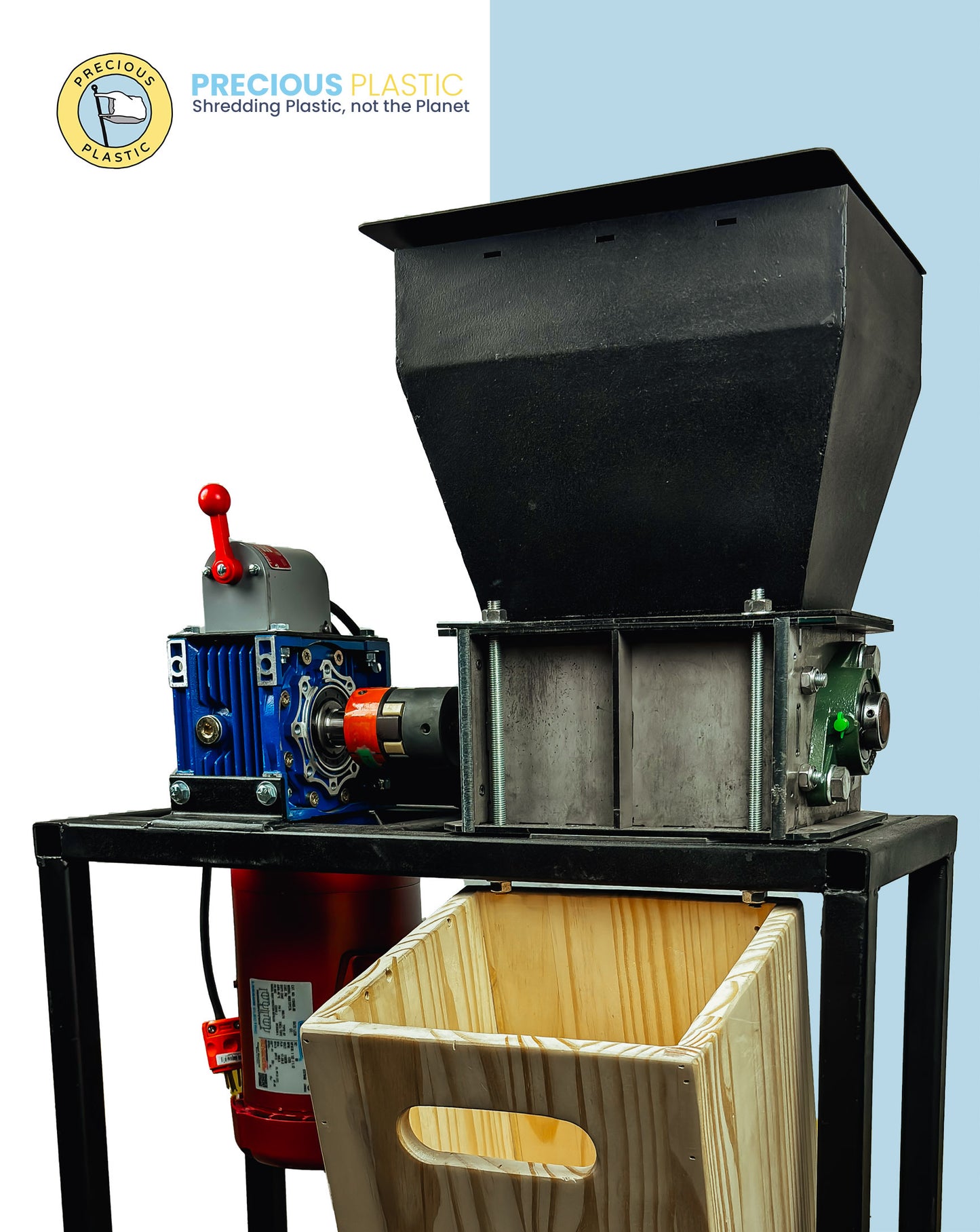

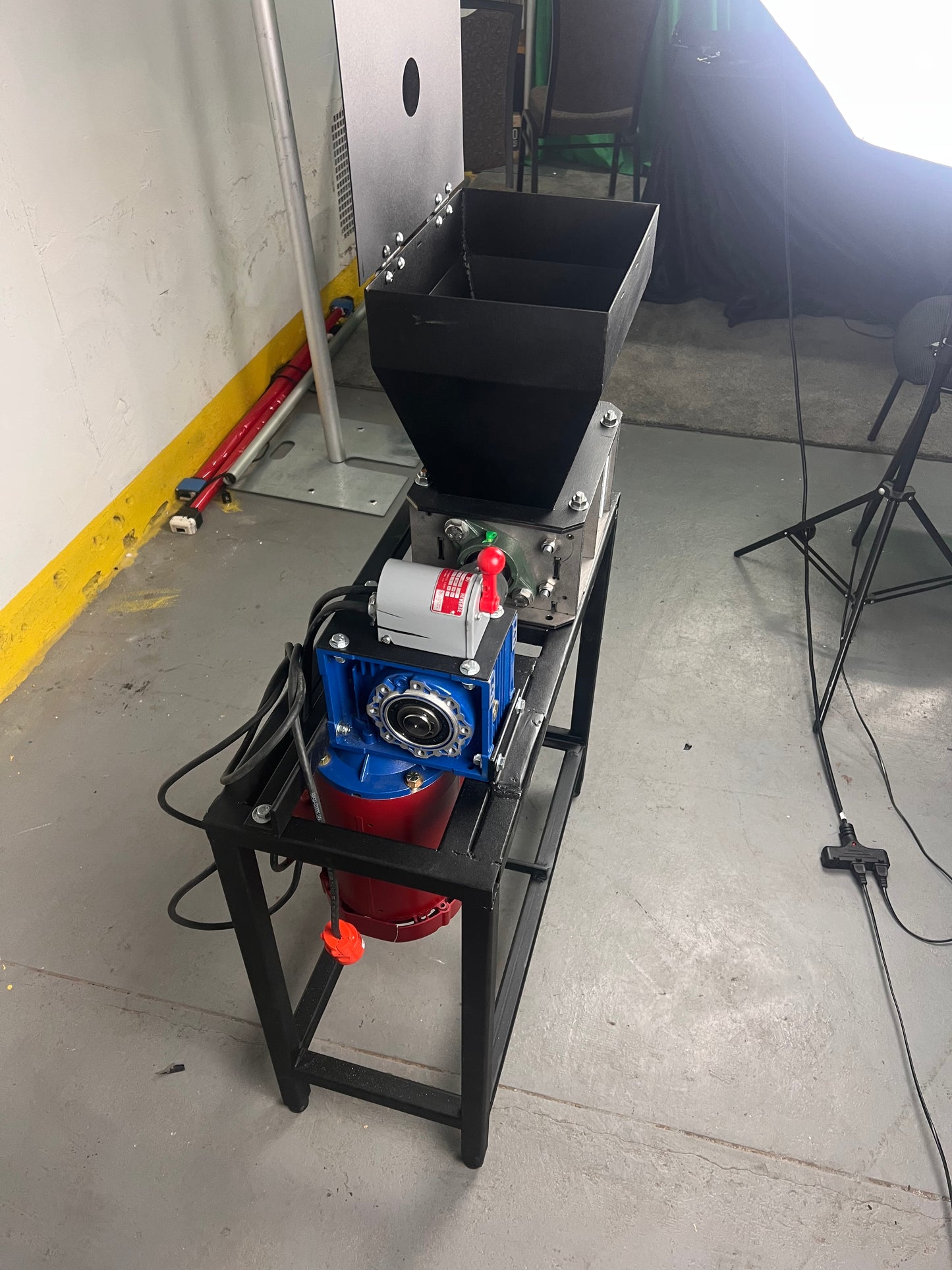

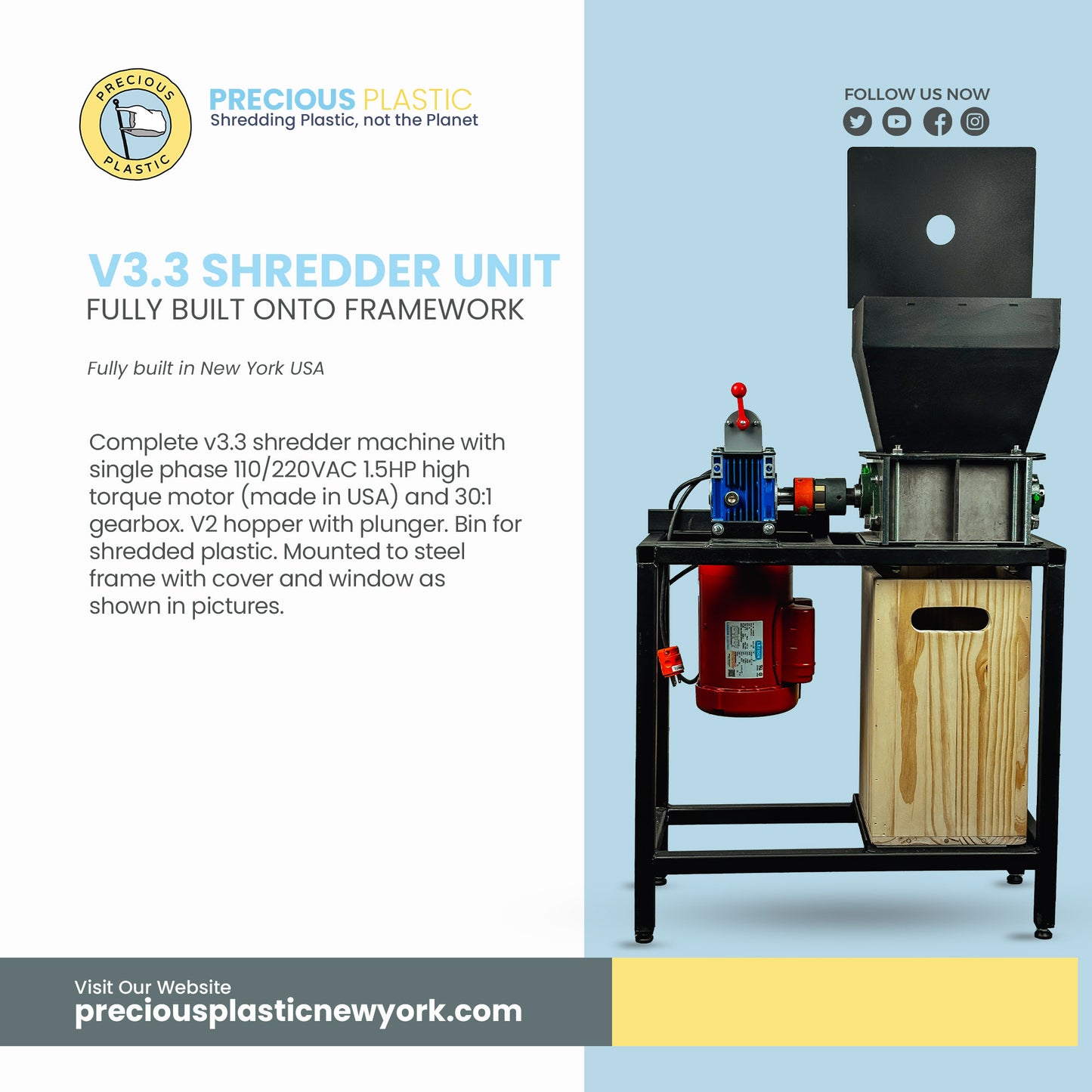

FULLY BUILT IN NEW YORK USA - V3.3 SHREDDER UNIT FULLY BUILT ONTO FRAMEWORK

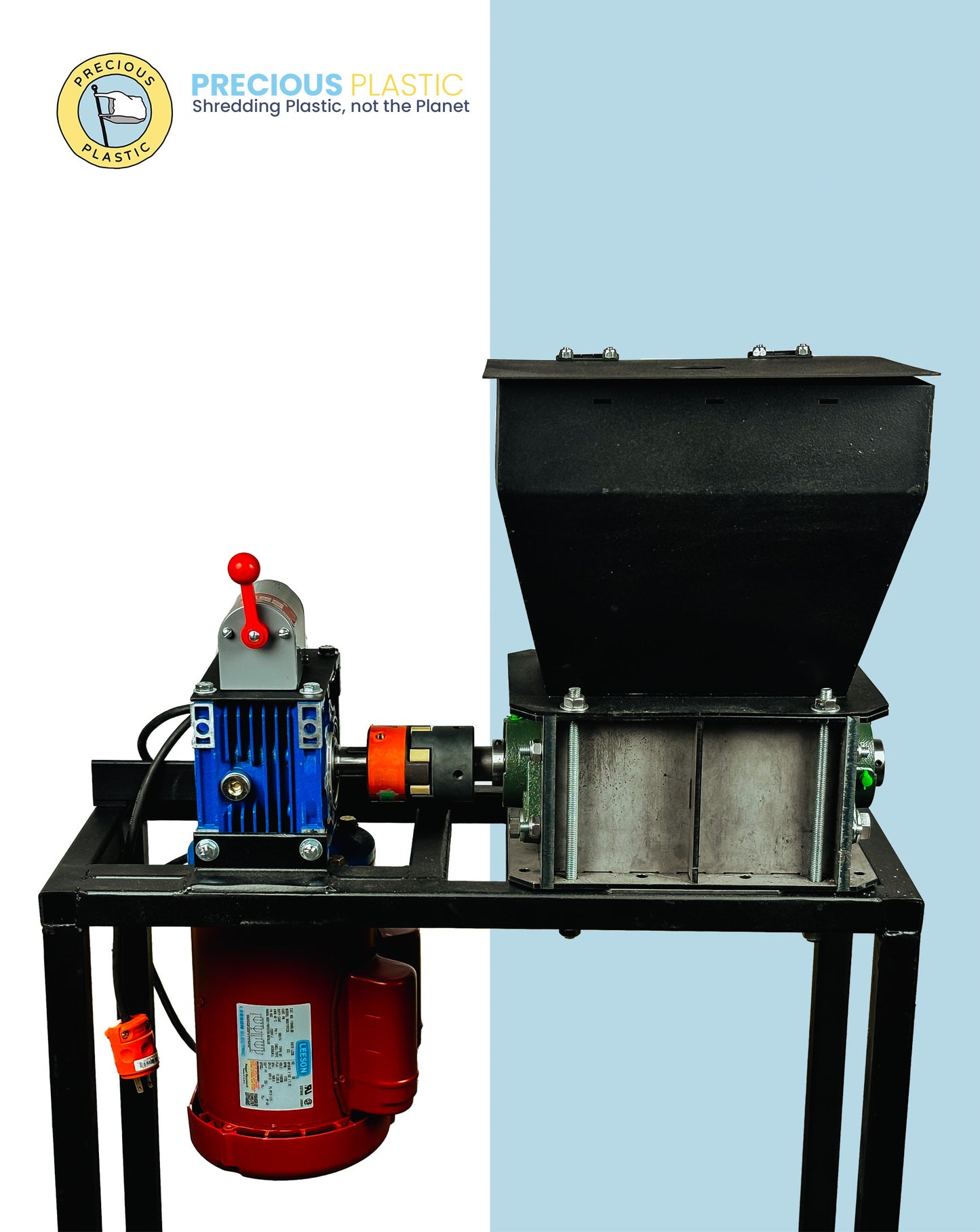

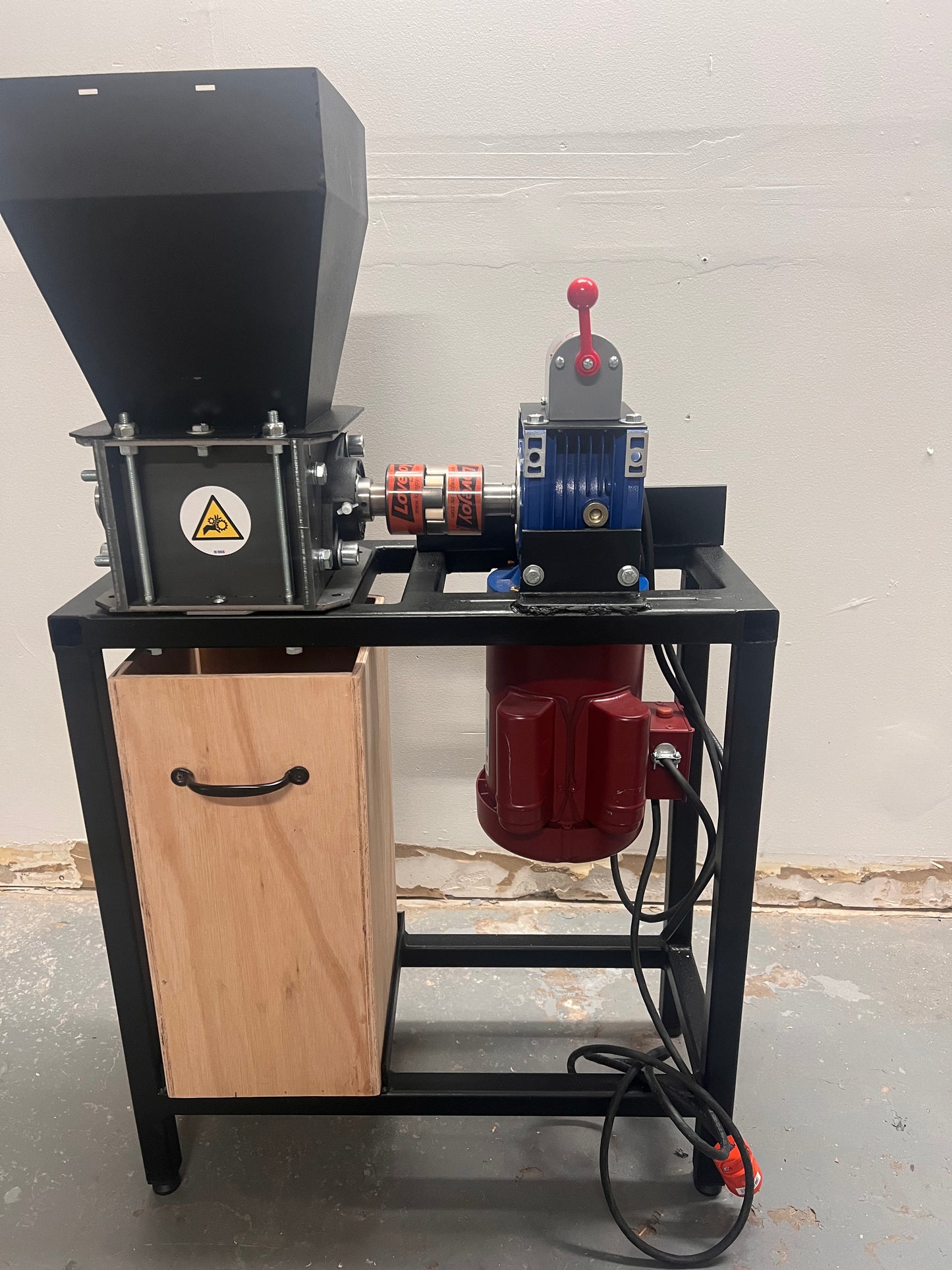

Complete v3.3 shredder machine with single phase 110/220VAC 1.5HP high torque motor (made in USA) and 30:1 gearbox. V2 hopper with plunger. Bin for shredded plastic. Mounted to steel frame with cover and window as shown in pictures.

Features:

• Reverse switch for clearing jams
• .25" perforated stainless steel screen
• Flexible coupler with urethane insert
• Inverted motor mouning for better stability
• Hand built in the USA with quality components and materials

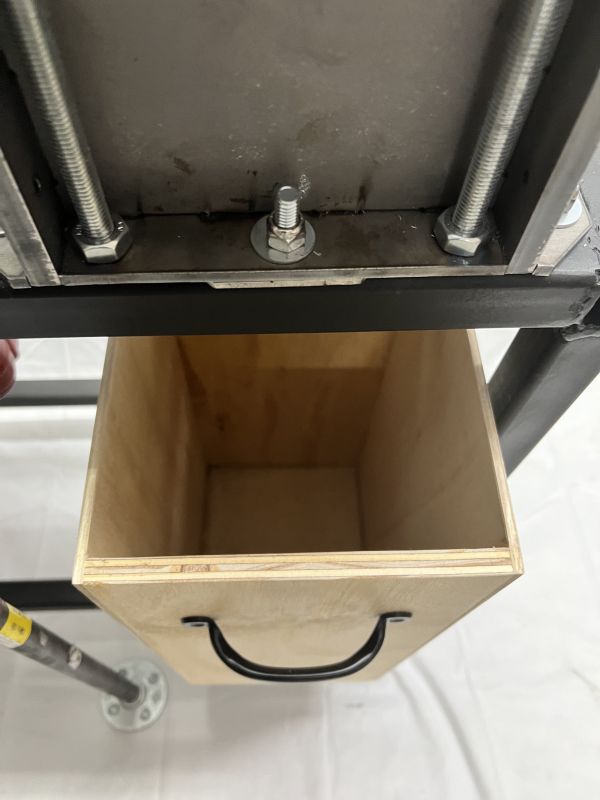

• wooden receptor is included

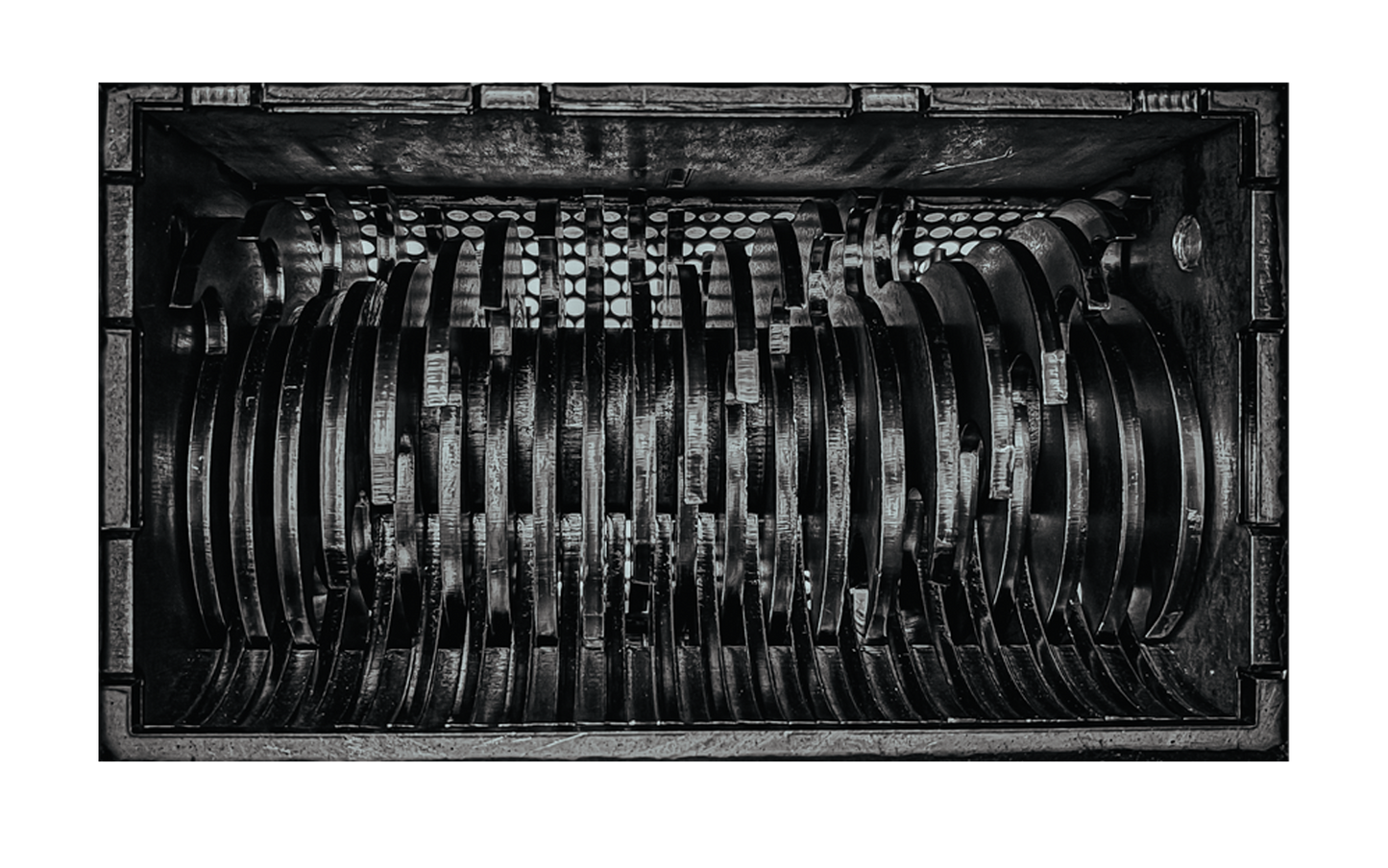

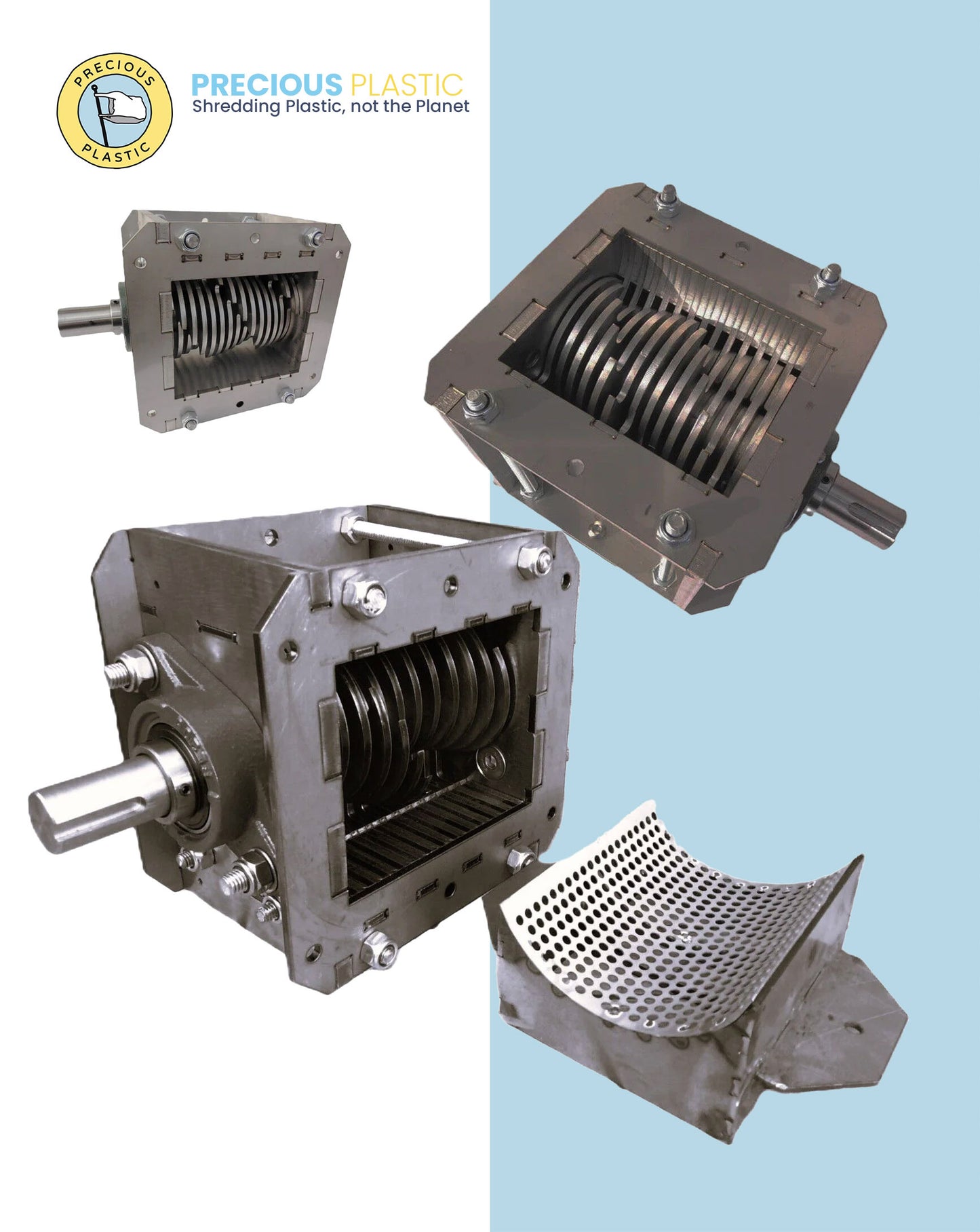

1- Shredder unit V3 shaft 1.18"

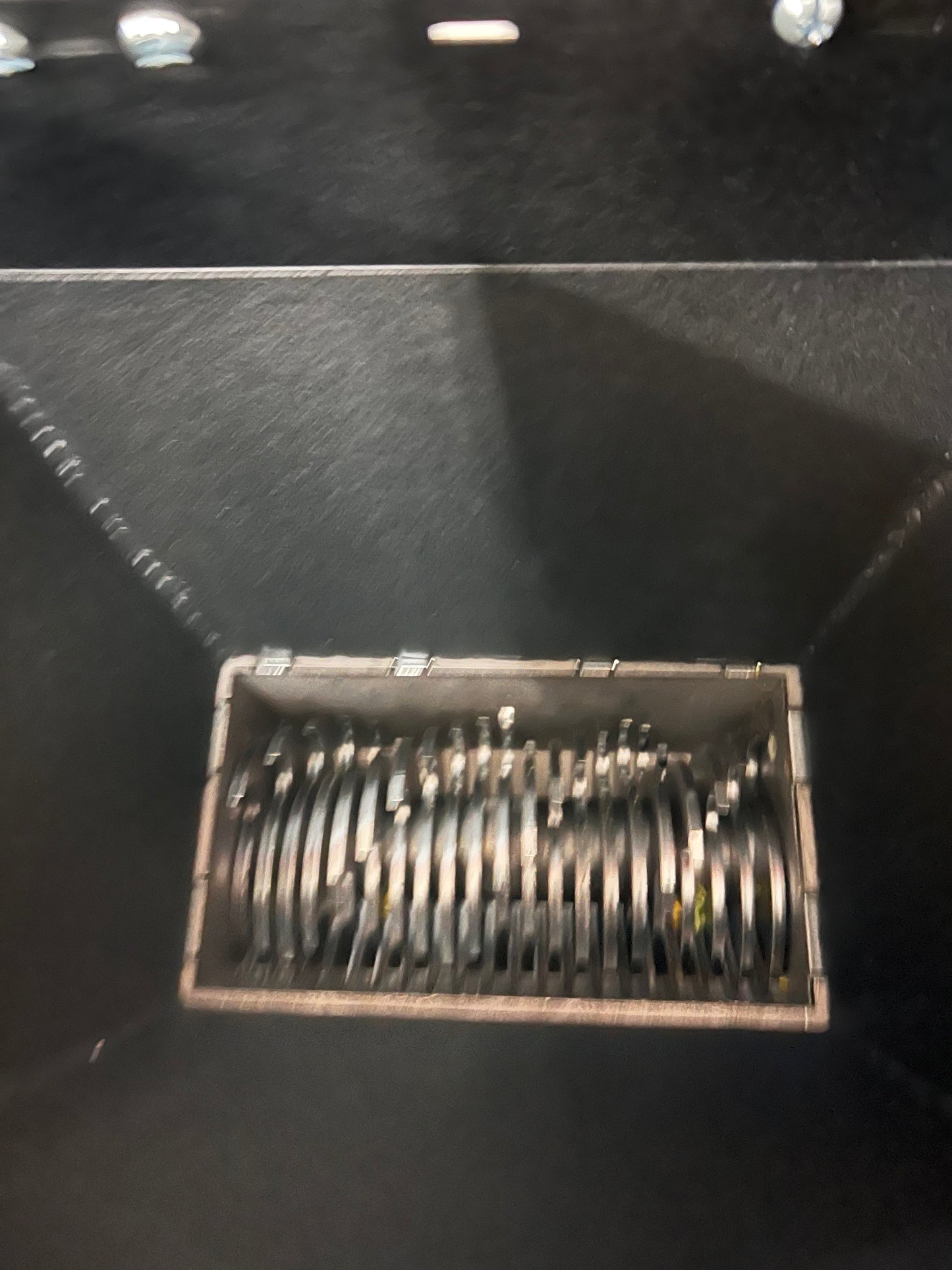

2. Hopper

3. Worldwide Electric CALM63-S Single Out- put Shaft For CALM Series 63mm Alumin- um Worm Gear Reducer

4. Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal

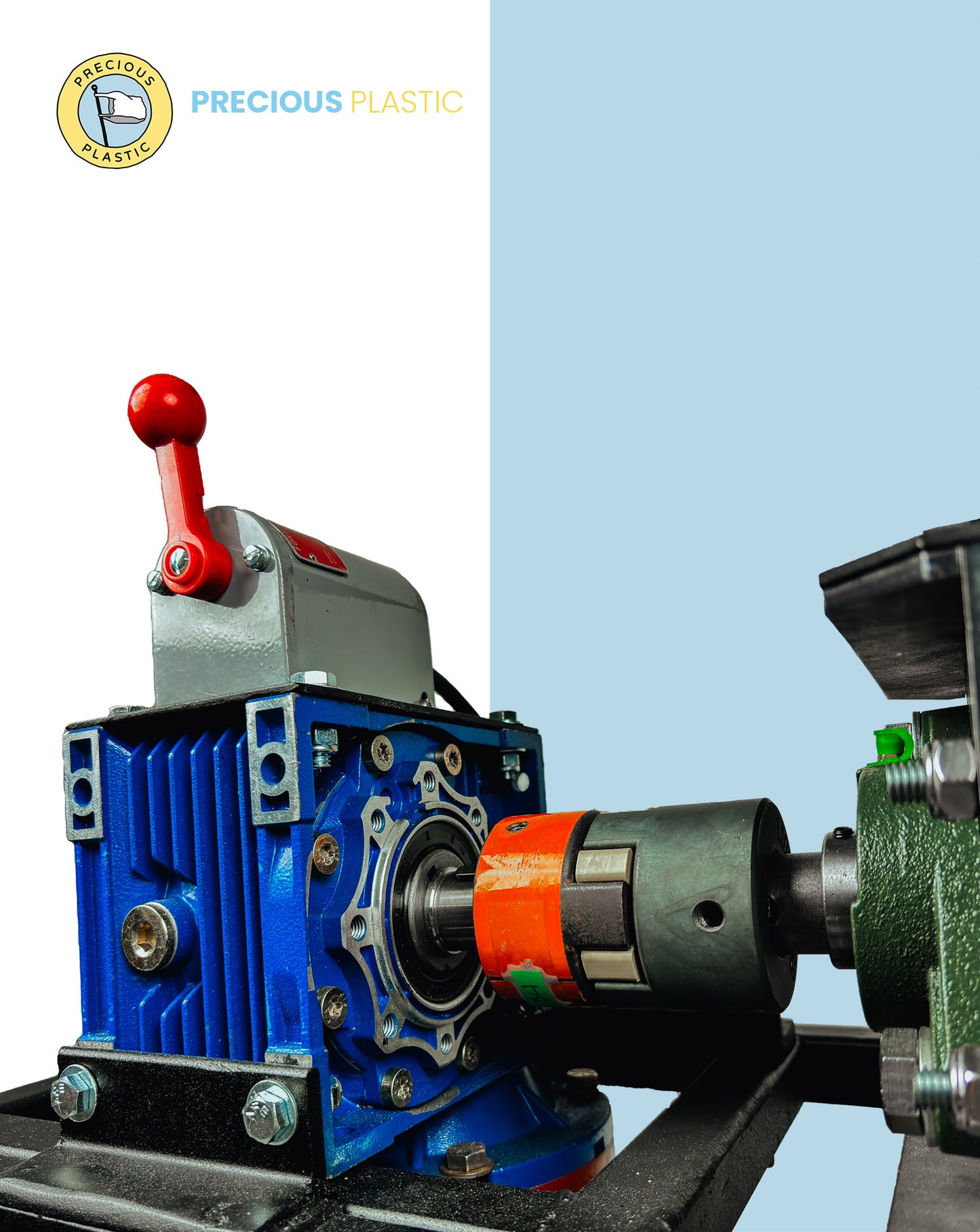

5. Drum Reversing Switch, Power Rating @ 230 VAC Single Phase 2 HP, Power Rating @ 115 VAC Single Phase 1 1/2 HP, Power Rating @ 230 VDC 1/4 HP, Length 4 1/2 Inches, Depth 4 Inches, Width 2 1/4 Inches, Reversing

6. Lovejoy L-100 1.1875 Coupling, 1-3/16" Bore

wait time is 3 weeks

Flat rate shipping within the USA 611 Euro ( crating and shipping via UPS freight, tracking number will be provided).
