5MM x 14 Blade Basic Shredder - V3.3 Design
Overview
We’re thrilled to present the latest evolution of our modular shredder: the V3.3 Shredder. This advanced model combines robust design and high efficiency, perfect for basic granulation and processing a range of materials. Featuring 14 x 5mm thick shear blades, this shredder excels in performance and ease of use.
Key Features
- Design: Precision laser-cut V3.3 framework with 3 rotating shear blades.

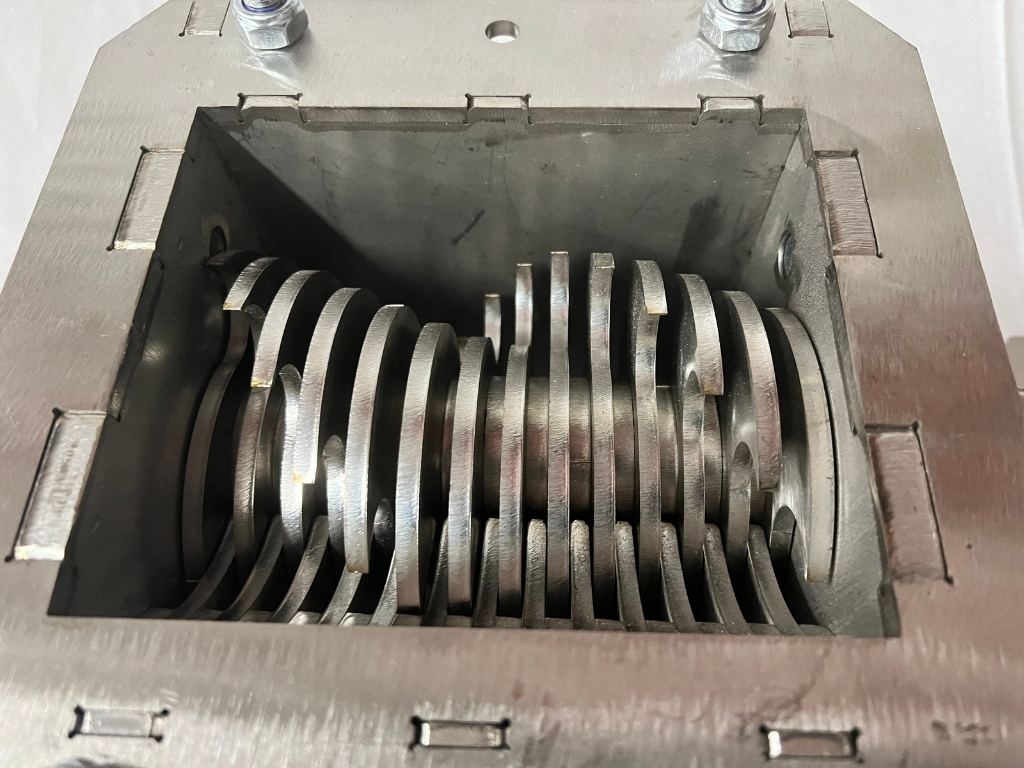

- Blades: 14 rotating blades, each 5mm thick, designed for 3 cuts per shaft rotation.
- Material: Constructed from durable EN8 Steel.

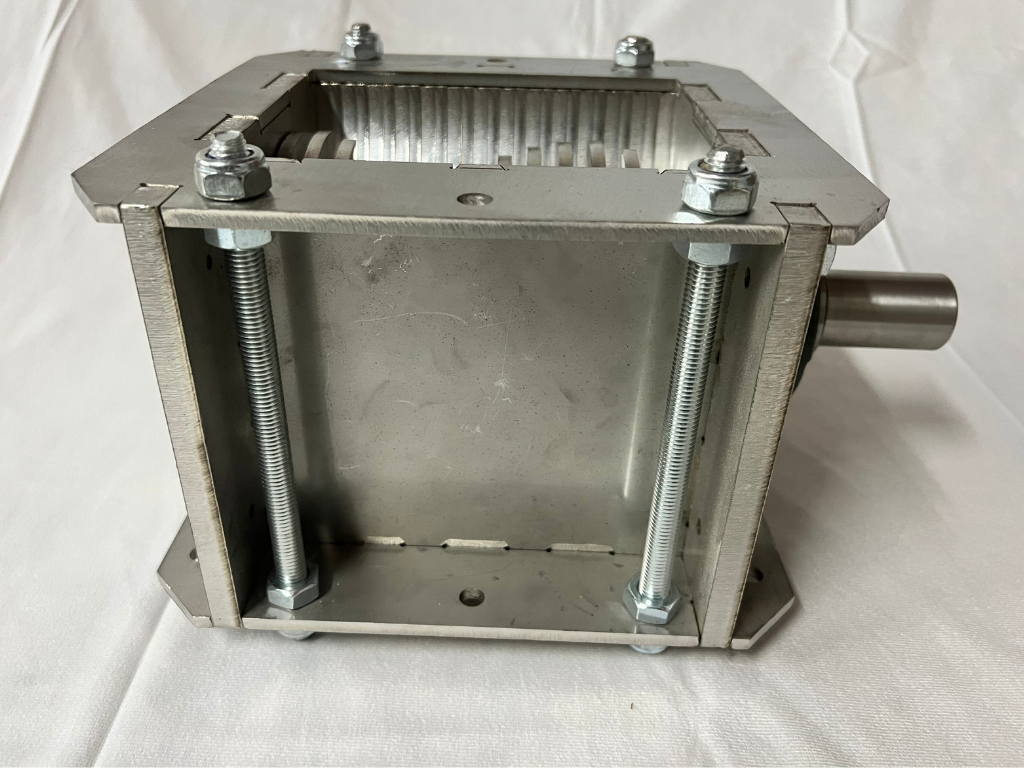

- Dimensions: 300mm width x 210mm depth x 145mm height.
- Cutting Area: 139mm x 149mm.

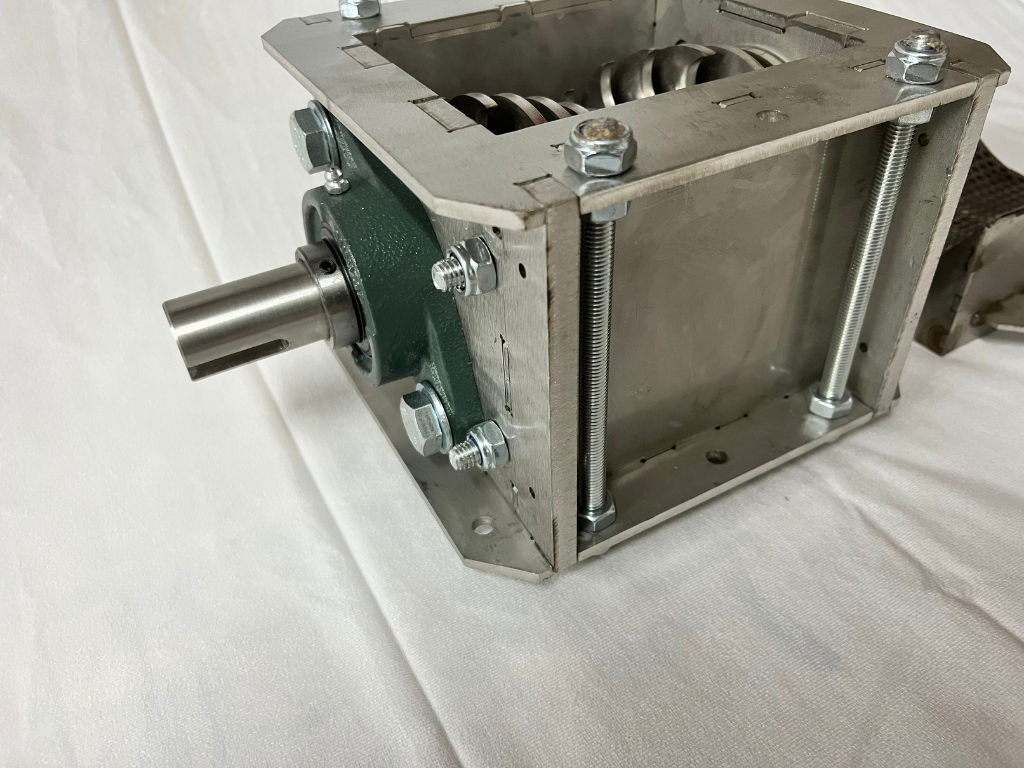

- Shaft: 32mm EN8 Steel hex shaft, turned for 30mm coupling with 8mm keyways.
- Speed: Operates at 50-70 RPM with high torque.
- Strength: Enhanced with 10mm and 5mm thick steel plates.

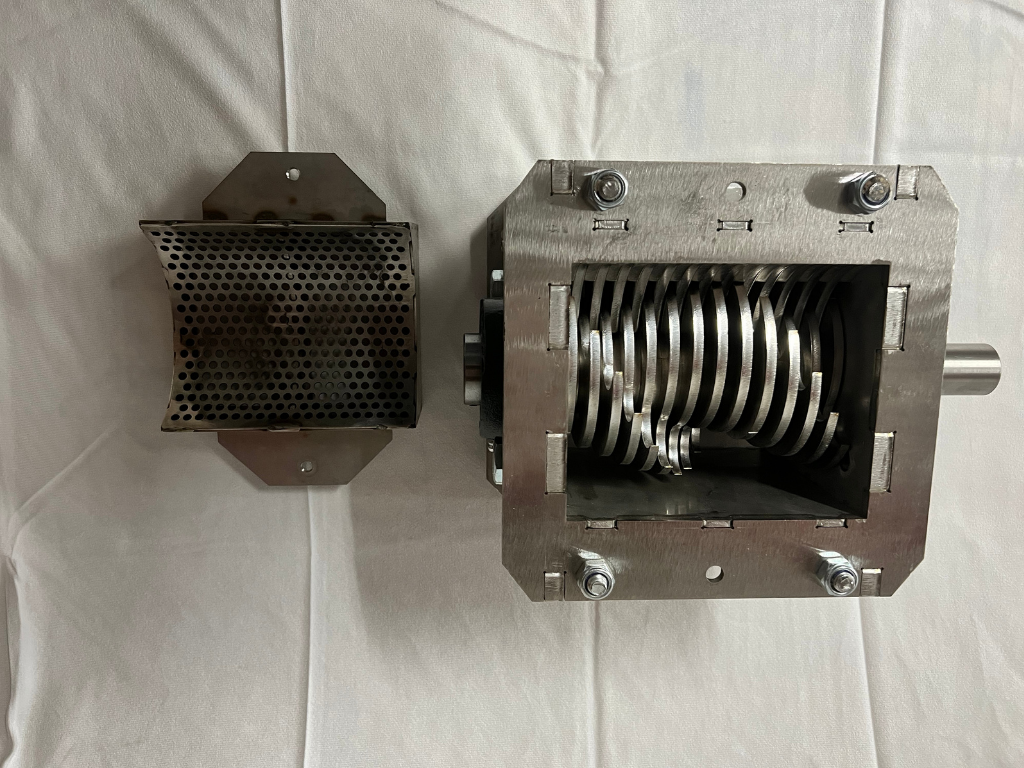

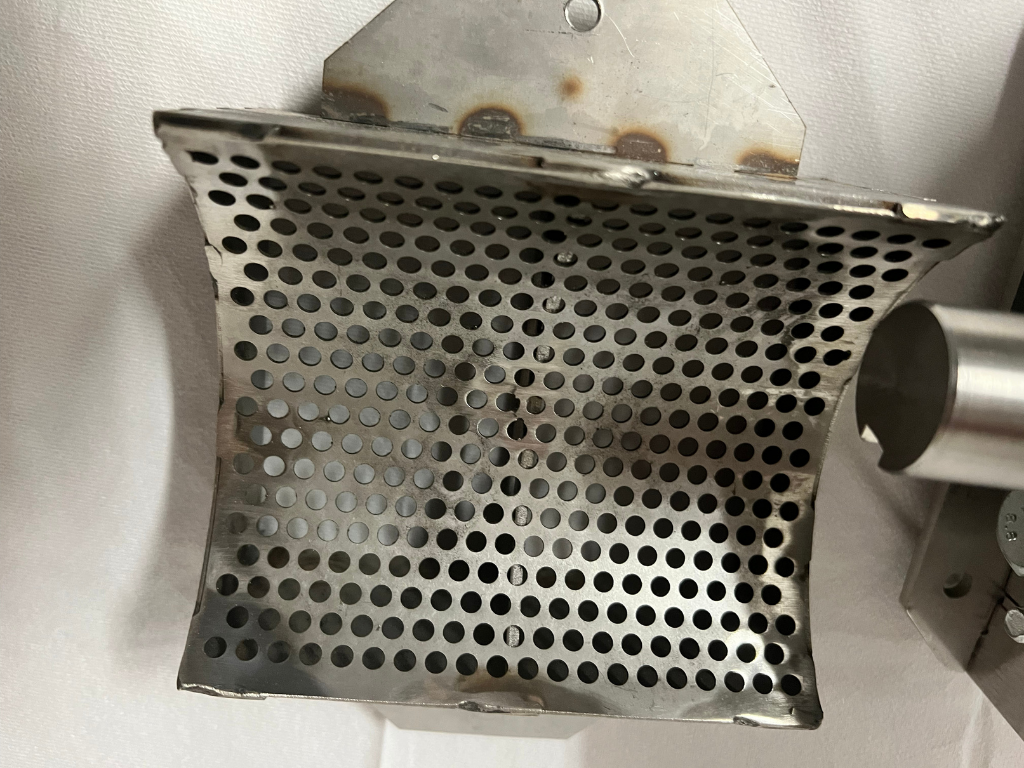

- Sieve: 6mm hole pre-welded EN8 mesh on a 3mm sieve frame.
What’s New?
- Enhanced Shaft: Upgraded to 32mm for increased strength and capability to handle thicker plastics.
- Thicker Steel Plates: Transitioned to 10mm, 5mm, and 3mm plates for improved durability.
- Weld-Free Design: Components are bolted together, simplifying assembly with minimal welding required.
- Redesigned Sieve/Mesh: Easier handling with a new design and handle, reducing previous assembly hassle.
Why Upgrade to V3.3?
- Robust Performance: Improved torque and efficiency for handling thicker plastics.
- User-Friendly Design: Simplified assembly and maintenance.
- Durability & Reliability: Enhanced build for long-lasting performance plus strength.
Assembly
The V3.3 features a modular design for easy assembly and disassembly, akin to a flat-pack furniture process. Essential tools for maintenance or assembly:
- M14 socket and wrench
- M10 socket and wrench
- Pair of grips or mole grips
- Adjustable spanner for M10 nuts

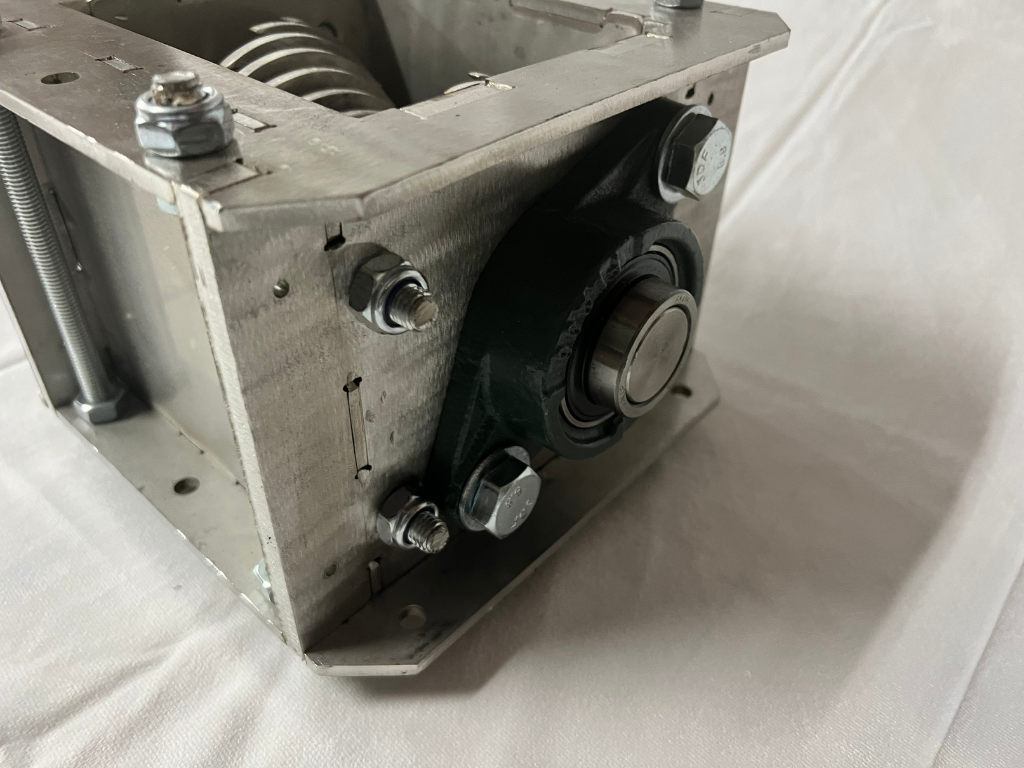

- 3mm hexagonal key for bearing set screws
Optional Add-Ons
- Galvanized Steel Hopper: sold seperately and Available upon request.
- Extra 8mm Sieve and Mesh Kit: Sold separately.
Motor Recommendation
-
Motor: Single-phase 3kW motor with a 50:1 worm gear/gearbox is recommended for 56RPM shaft rotation and excellent torque (380+Nm). Alternatively, a 40:1 ratio motor provides 310Nm and 70RPM.
-
Coupling: Use LoveJoy L100 or L110 couplings with spider shock absorbers (couplings not included).
Shipping and Ordering Information
- Processing Time: Please allow up to 2 weeks for cutting and shipping, especially during busy periods.
- Shipping: Confirm your location for shipping options. International orders may incur additional customs duties (DAP). Shipping protection and updates are included.
- Business Hours: Orders processed within 5 business days (Monday to Friday).
Contact Us
For shipping inquiries or special requests, please provide your location or check the shipping section.
Thank you for choosing our V3.3 basic Shredder. We’re committed to supporting your granulation and material processing needs.
Instruction Manual: Available upon request.
